1.Cambridge audio AXC-25 สภาพดีราคา 5,999.B
2.Cambridge audio AZUR 851 C สภาพดีราคา 18,999.B
สนใจติดต่อ 0816623531

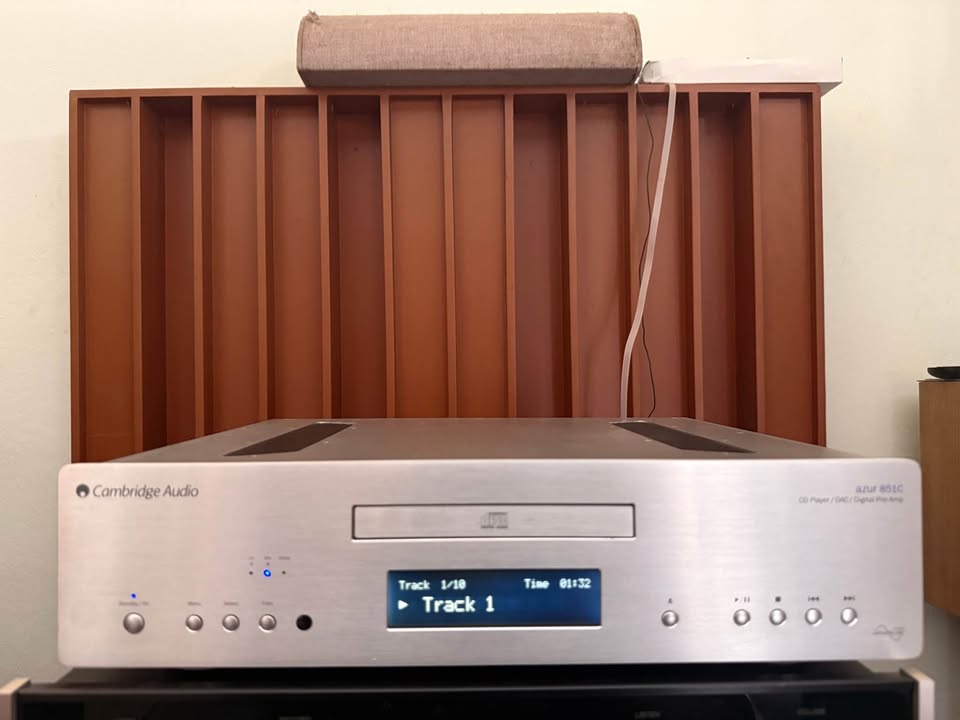

Cambridge audio AZUR 851 C
AZUR851C

FLAGSHIP UPSAMPLING DAC, CD PLAYER & PREAMPLIFIER



TECHNICAL SPECIFICATIONS



· Digital to analogue converterDual Analog Devices AD1955 24-bit DACs

· Digital filterAnalog Devices Black Fin ADSP-BF532 32 bit DSP performing 2nd Generation ATF2 upsampling to 24-bit/384kHz. Linear Phase, Minimum phase or Steep modes.

· Analogue filter2 Pole Fully Differential Linear Phase Bessel filter

· Digital input 1S/PDIF 75 Ohms or TosLink optical

· Digital input 2S/PDIF 75 Ohms or TosLink optical

· AES/EBU input XLR balanced 110 Ohms per phase

· USB audio input USB Type B conforming to Audio profile 1.0 or USB Audio profile 2.0 (user 1.0 or USB Audio profile 2.0 (user selectable)

· Audio outputsBalanced XLR and unbalanced RCA analogue audio outputs

· CompatibilityUSB 1.0 16-24 bit, 32-96kHz
USB 2.0 16-24 bit, 32-192kHz
TosLink 16-24 bit, 32-96kHz
S/PDIF and AES/EBU 16-24 bits 32-192kHz
CD playback is intrinsically limited to 16-bits 44.1kHz

· THD (unweighted) @ 1kHhz 0dBFs< 0.0004%

· THD (unweighted) @ 1kHz -10dBFs< 0.0004%

· THD (unweighted) @ 20kHz 0dBFs< 0.0007%

· IMD (19/20kHz) 0dBFs< 0.0002%

· Linearity @ -90dBFs+/- 0.2dB

· Linearity @ -120dBF+/- 0.4dB

· Stop-band rejection (>24kHz)> 120dB

· S/N ratio (ref 1w)> 113dB

· Total correlated jitter< 60pS for all digital inputs, CD playback and USB 2.0
< 180pS for USB 1.0

· Crosstalk @1kHz< -130dB

· < -130dB< -114dB

· Output impedance< 50 Ohms

· 0dB Fs output2.2Vrms (2.2Vrms each phase for the balanced output)

· Max. power consumption40W

· Idle consumption8W

· Standby power consumption<0.5W

· ColourBlack or silver

· Dimensions (WxHxD)430 x 115 x 360mm (16.9 x 4.5 x 14.7”)

· Weight10.0Kg (22lbs)
