ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan
โพสต์ : 15:13 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

รีวิวร์ เครื่องจากต่างประเทศครับ ...

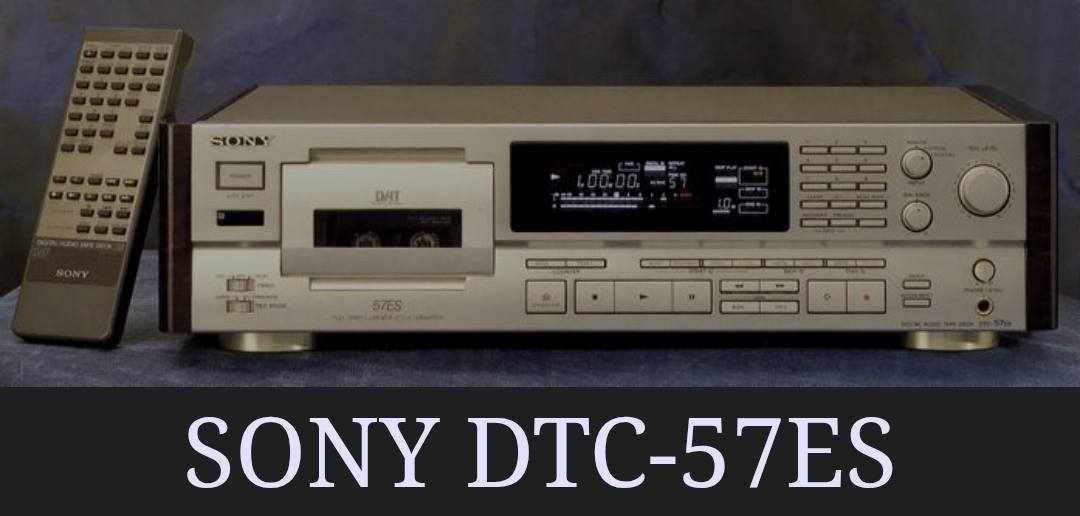

SONY DTC-57ES ¥ 88,000 (released in 1991)
Commentary

SCMS compatible DAT deck equipped with state-of-the-art pulse D/A converter and various
functions.

Equipped with SCMS (Serial Copy Management System), digital → digital recording from CD
player, which was impossible until now, is possible only for one generation.
A SCMS-compatible DAT deck can record digitally to digitally using a CD as a master, but cannot
record digitally to digitally using a recorded tape as a master. A tape recorded with an analog
input can record digitally to digitally for one generation using a master, but cannot record digitally
to digitally for the second generation using a master.

In the case of satellite broadcasting, it is also possible to produce digital second generation tapes
based on digital recording tapes of digital audio output.
In either case, recording can be repeated using analog input / output only.

A 2D. D. + 1 reel motor mechanism has been adopted, with dedicated direct drive motors for
the capstan and head drum rotation, and dedicated motors for the reel.
In addition, an upright see-through type compartment is used for cassette compartment.

The A/D converter is equipped with a 1-bit type A/D converter that can shift the unwanted
spectrum generated by the A/D conversion far beyond the band of the music signal. Therefore,
the low-pass filter that is inserted to prevent the generation of aliasing noise is also a light type
with gentle characteristics.
This minimizes the deterioration of phase characteristics and group delay characteristics.

A 1-bit type pulse D/A converter is used for the D/A converter.

This D/A converter uses a single electronic switch to turn on / off one current source at a high
speed of 5000 full bloom per second to express music signals as dense and coarse waves of
pulses. In principle, there is no glitch, 0 cross distortion, or differential nonlinear distortion, and
natural sound quality is obtained.

It uses a software servo that is a substantial software version of the motor servo.

With software servo, various controls can be performed only by software settings. Therefore,
in search and other operations, the tape can be searched slowly at the beginning and immediately
before it stops, and at a maximum speed of approximately 200 times (at standard speed) during
driving so as not to burden the tape.
It also helps to reduce sound generation time and improve cue / review sound.

It uses a newly developed second generation LSI that integrates signal processing such as
error correction, RAM control and digital I/O into a single LSI. This LSI has an integration density
of 20000 gates per LSI.
In addition, the microcomputer for controlling software servo and mechanism control is also
integrated into a single LSI, enabling a significant reduction in the number of parts and a
simple circuit board configuration, improving reliability and error correction capability.

It is equipped with subcode function unique to DAT.
The start ID is a subcode that indicates the beginning of a song. You can write the start ID in
two modes : Auto, which writes the start ID automatically at the beginning of the song, and
Manual, which allows you to write the start ID at your desired position. You can also erase
the start ID if necessary.
The Skip ID is an ID that is written in the beginning of the part you want to listen to when you
play the tape. If you find the Skip ID during playback, it is automatically fast-forwarded to the
next Start ID. You can delete the Skip ID later.

If the end ED is written at the end of the required part, it is regarded as the end of the tape, and
it is auto-rewound for playback and stopped for fast forward.

It is equipped with a rehearsal function for writing start ID and skip ID / end ID manually during
playback, and point writing of A ⇔ B repeat.
During rehearsals, the point can be moved back and forth in units of 0.3 seconds while listening
to and confirming the sound. The movement time is displayed on the display so that you can
easily write to the just point. In addition, the already written start ID can be corrected during rehearsals.

You can assign a program number to the Start ID, and you can select songs directly by simply
selecting the number with the 10 key during playback. The program number is automatically
assigned when recording, and can also be used to manually write the Start ID.

Equipped with a renumbering function that renumbers the number from the head of the tape
with one touch operation.

It is equipped with a Shift Number function that renumbers the start ID by adding it back in
0.3 second increments so that you can play the beginning of the track with plenty of time.

It is possible to record the absolute time which shows the absolute time from the tape top.

It is equipped with a date function, and based on the built-in dedicated clock, it can
automatically record the current year / month / day / day of week / hour / minute / second /
AM/PM in the subcode, and can be called up anytime during playback.

AMS play is possible in which you can start the previous or next song according to the number
of times you press the AMS button based on the song you are listening to.

It is equipped with program number search, and by using 10 key and play button jointly,
you can directly find the music which recorded the program number of the number you
pressed.

Equipped with a music scan function, you can search for the start ID one after another and play
it for about 8 seconds each.

The specified program number and the entire tape can be repeated.

Equipped with an end search function, you can quickly search for an end ID or an unrecorded
part that has never been recorded.

By using the included remote control, you can play 99 RMS songs by rearranging the
program numbers (songs) in the order you like.

Equipped with long play mode capable of continuous recording for up to 4 hours (when using
DT 120 r).

Fade in / fade out is possible with analog input recording and digital output / lineout output playback from tape.
The Fade In / Out Time can be set individually in a range from rapidly changing 0.2 seconds
to slowly changing 15 seconds. It is also linked with the Pause function, so it can be used when
editing and recording a DAT tape as a master to a cassette.

Equipped with equipped with two types of digital input / output terminals which are coaxial
with optical input. The optical input and coaxial input can be switched with a switch on the
front panel. The optical input uses a servo-type digital signal normalizer circuit which absorbs
cable jitter.

Digital peak margin display is available, and digital display is available in dB units to indicate
how much more recording level is available during recording.

It comes with a wireless remote control that can operate most of the body.
This remote control can also be used to select music and pose for a Sony remote-controlled
CD player. Moreover, it can be used for wireless CD-synchronized recording, in which the
recording pose of the CD player is released and the CD player starts playing.

The fs map function, which uses a digital peak level meter, provides a visual indication of
the sampling frequency at which recording is being performed at an approximate location on
the tape.
The upper part of the meter lights up at 32 kHz, the lower part lights up at 48 kHz, and both
lights up at 44.1 kHz.

There are 2 variations, gold and black.
Also, the remote controller came with a color that matched each design.

Type DAT deck
Number of channels 2-channel stereo
Sampling frequency / number of quantization bits 48kHz/16-bit linear (recording / playback)
44.1kHz/16-bit straight line (recording / playback only for Digital in)
32kHz/16-bit straight line (recording / playback only for Digital in)
32kHz/12-Bit Non-Linear (Recording / Playback)
Error correction Double encoded reed solomon cord
Emphasis Pre-emphasis (for analog input during recording) is fixed to off
Automatic switching of de-emphasis (during playback) on/off
Modulation system 8-10 conversion
Frequency characteristic 2 Hz to 22 kHz ± 0.5 dB
Dynamic range 92 dB or more (emphasis off during recording)
Signal-to-noise ratio 92 dB or more (emphasis off during recording)
Total harmonic distortion factor 0.0045% or Less (1 kHz)
Wow and flutter Measurement limit (± 0.001% W. Peak) or less
Interface Analog Line in/out (pin jack)
Digital in/out (EIAJ-compliant coaxial and optical)
Pwer 100 VAC, 50Hz/60Hz
Power consumption 24W
External dimensions Width 470x Height 125x Depth 350 mm
Side Wood Removal : Width 430 mm
Weight Approx. 8.2 kg

ผู้โพสต์ : Chayatorn
อ่าน 267 | ตอบ 18
เพิ่มข้อความ : 1
เพิ่มข้อความเมื่อ : 15:13 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

เครื่องเล่นเทป DAT ซึ่งมีคุณภาพเสียงระดับสตูดิโอที่คุณไม่ควรพลาดในการเปิดประสบการณ์ในการฟังเพลง
ด้วยคุณภาพเสียงที่มีเอกลักษณ์โดดเด่นไม่เหมือนใคร ให้เสียงอนาลอคแบบเทป แต่ได้เรนจ์เสียงที่มีดีเทล
เสียงเบส-กลาง-แหลม ชัดเจนแบบดิจิทัล ในระดับ 48kHz การทำงานสมบูรณ์ทั้งฟังก์ชั่นเล่น-กรอเทป และ อัดเทป
ระบบการค้นหาเพลงไวแบบซีดี ด้วยระบบ Auto Music Censor (AMS) เทปจะลงรหัสดิจิทัลระหว่างเพลงที่บันทึก
เพื่อการค้นหาที่ไวมาก รองรับสัญญาณเข้าและออก แบบ อนาลอค RCA และ Digital Coax / Optical อย่างละ 1 ชุด
ปุ่มกดด้านหน้าทำงานดี หัวเทปยังใสปิ๋ง ทนทานมาก หน้าปัดสวย ไฟสวยมีเสกลระดับเสียง
ขณะเล่นและอัดเทป ตัวเครื่องมีรอยการใช้งานทั่วไป โดยรวมสวย สีทองแชมเปญ ประกบด้วยข้างไม้ไฮกรอส สวยหรู
สายไฟเดิมเส้นใหญ่นำสัญญาณดี ขั้ว RCA ชุบทองเกรดออดิโอ ออกขายใหม่ๆรุ่นนี้ ราคาสูงถึง 88,000 Yen
ใครยังไม่เคยลองแนะนำให้ลองครับ สภาพดีมือเดียวจากญี่ปุ่นยังไม่เคยลงขาย ขายพร้อมรีโมทของเเท้หายากมากๆ
รีโมทถ้าแยกราคาประมาณ 2,000 up เครื่องใช้ไฟ 100V. เดิมๆจากญี่ปุ่น

ราคา 18,500 บาท (ค่าส่งทั่วไทย +300 บาท)

**Option**
+ ม้วนเทป DAT (NEW) ม้วนละ 600 บาท

สะดวกให้มาฟัง เฉพาะ ส-อา. (จ.นนทบุรี)
สะดวกส่งของแค่วัน ส.,อา.,จันทร์ เท่านั้น

สนใจ สอบถามรายละเอียดเพิ่มเติมที่ คุณชยธร
โทร. : 0911945555
(add Line id: 0899231177)

การส่ง
โทรคุยตกลงกัน รับกับมือจะดีที่สุด ทดลองฟังเสียงที่บ้านได้ (ต้องนัดล่วงหน้า)
ตจว.ส่งให้ได้ ระบบขนส่งเอกชน (นิ่มฯ/ J&T ส่งถึงบ้าน ค่าแพค+ส่ง 300 บาท)
แต่ผมไม่รับรองความเสียหายทุกกรณี เพราะอุบัติเหตุเกิดขึ้นได้เสมอ
ค่าส่งผู้ซื้อจ่ายเอง หากไม่แน่ใจให้หาทางมารับกับมือ
** ของที่ขายเป็นของ VINTAGE ไม่ใช่ของใหม่ "ไม่มีประกัน"**
***ไม่รับเปลี่ยน - คืนของ ***

การจอง โอนเงินซื้อ/จอง
- ธ.ไทยพาณิชย์ บัญชีออมทรัพย์ เลขที่ 2022174366
- ธ.กสิกรไทย บัญชีออมทรัพย์ เลขที่ 6972123666

ขอสงวนสิทธิ์ให้ท่านที่ซื้อสด / จองด้วยการโอนมัดจำ ก่อนจองด้วยวาจาทุกกรณีครับ
ไม่รับจองโดยวาจา ขายให้ผู้พร้อมซื้อ,โอนซื้อ - ไม่ยกไปให้ลอง อยากลองมาลองที่บ้านเท่านั้น

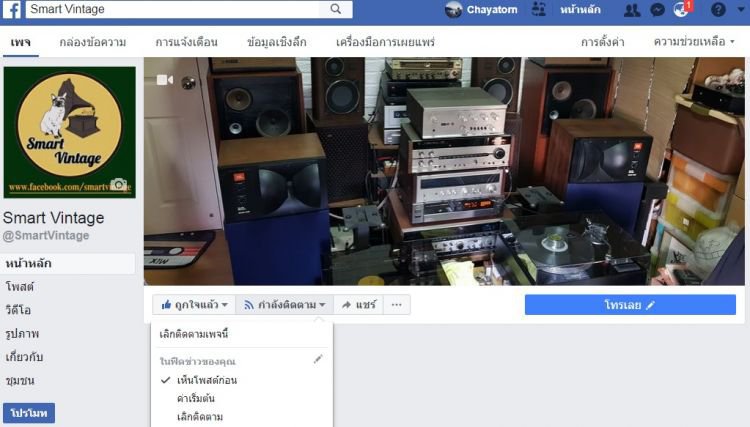

Fan page: >>> https://www.facebook.com/SmartVintage

#เทปDAT #DAT #เครื่องเสียง #Tape #SONY #DTC57ES #โซนี่ #HiFi #DatPlayer

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 2
เพิ่มข้อความเมื่อ : 15:18 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 3
เพิ่มข้อความเมื่อ : 15:18 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 4
เพิ่มข้อความเมื่อ : 15:18 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 5
เพิ่มข้อความเมื่อ : 15:19 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

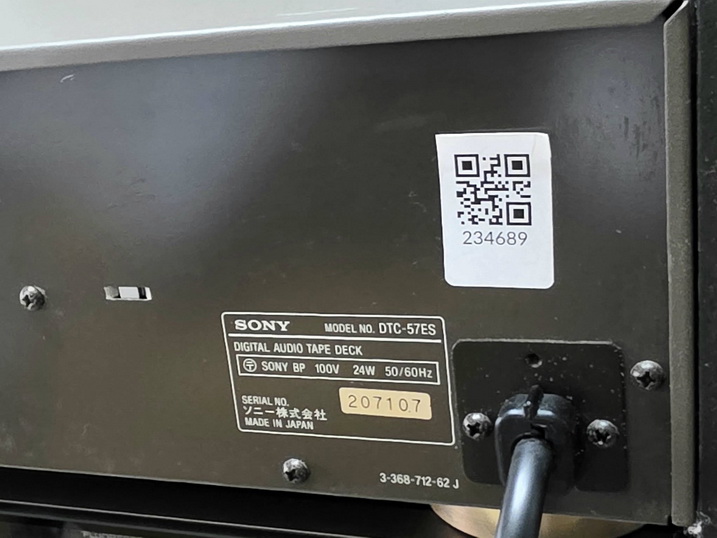

สภาพสวย เลเบลเดิมอยู่ครบ

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 6
เพิ่มข้อความเมื่อ : 15:19 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

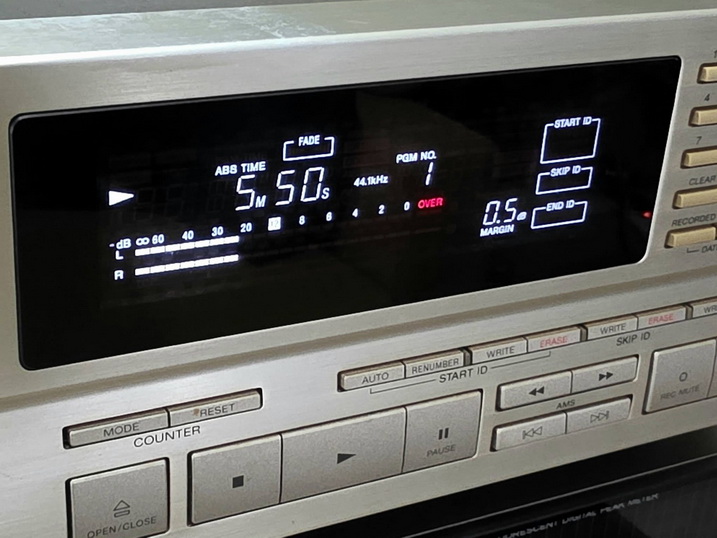

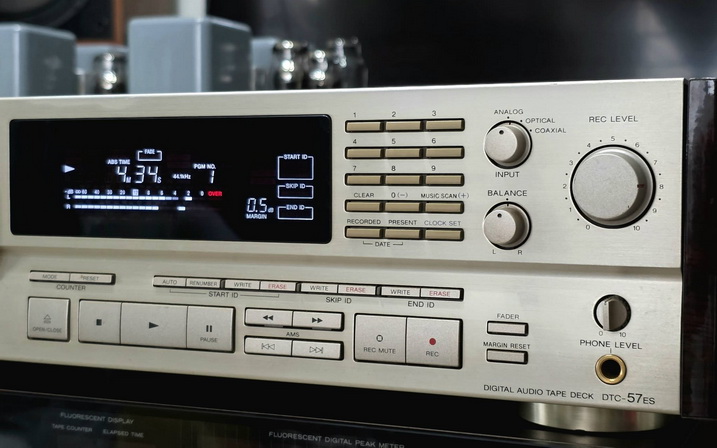

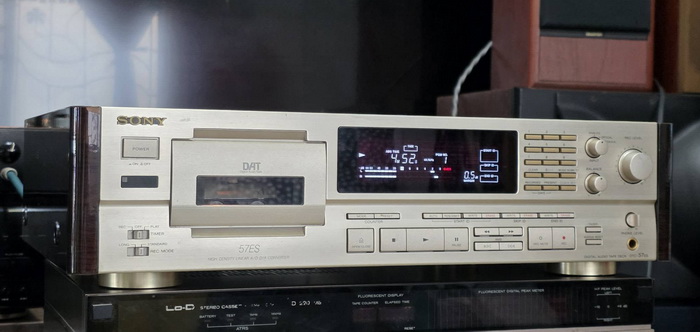

หน้าจอ แสดงไฟทำงานสวยงาม

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 7
เพิ่มข้อความเมื่อ : 15:19 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

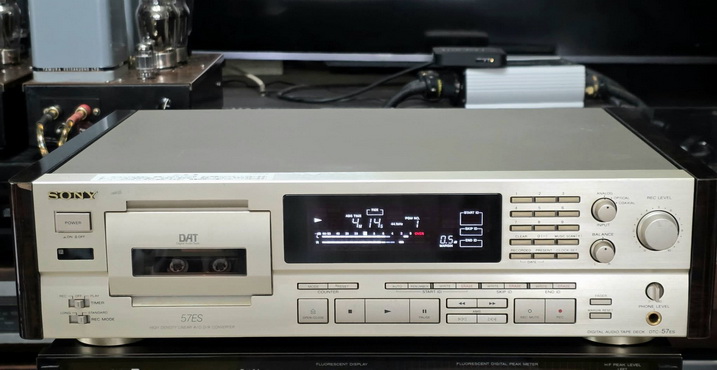

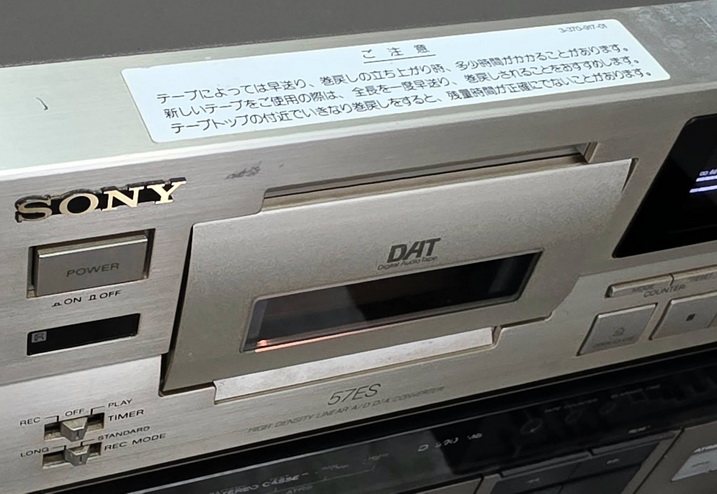

ตัวเครื่องมีรอยการใช้งานทั่วไป โดยรวมสวย สีทองแชมเปญ ประกบด้วยข้างไม้ไฮกรอส สวยหรู

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 8
เพิ่มข้อความเมื่อ : 15:19 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

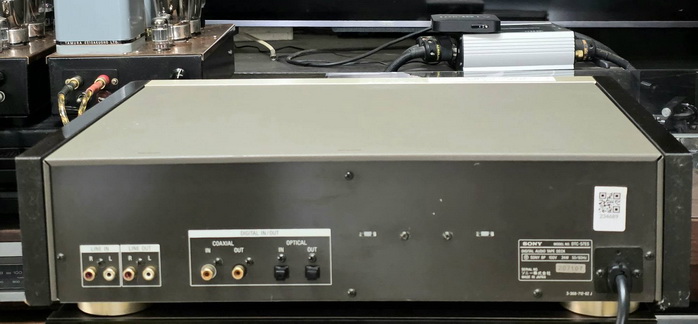

ข้างหลังก็สวย

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 9
เพิ่มข้อความเมื่อ : 15:20 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

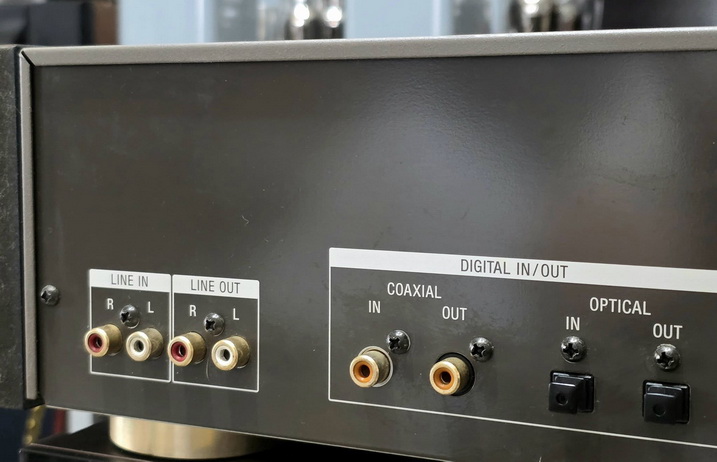

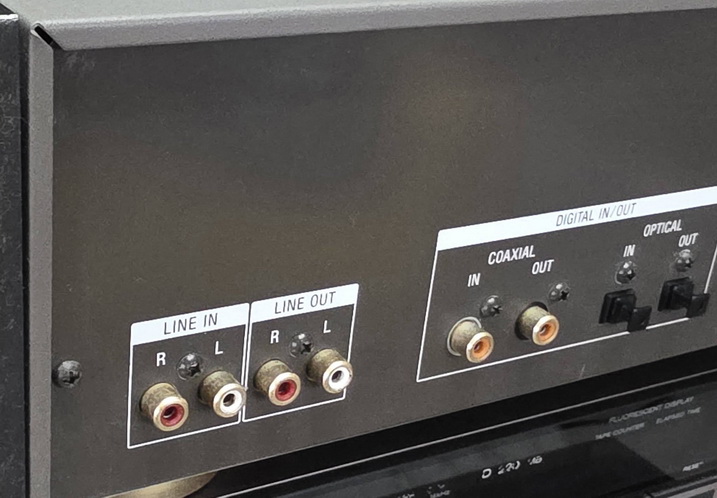

รองรับสัญญาณเข้าและออก แบบ อนาลอค RCA และ Digital Coax / Optical อย่างละ 1 ชุด
ขั้ว RCA ชุบทองเกรดออดิโอ

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 10
เพิ่มข้อความเมื่อ : 15:20 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

รองรับสัญญาณเข้าและออก แบบ อนาลอค RCA และ Digital Coax / Optical อย่างละ 1 ชุด
ขั้ว RCA ชุบทองเกรดออดิโอ

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 11
เพิ่มข้อความเมื่อ : 15:20 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 12
เพิ่มข้อความเมื่อ : 15:20 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

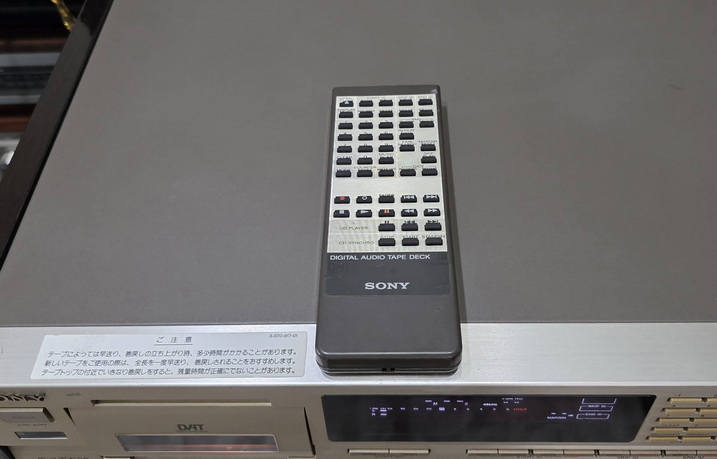

ขายพร้อมรีโมทของเเท้หายากมากๆ
รีโมทถ้าแยกราคาประมาณ 2,000 up

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 13
เพิ่มข้อความเมื่อ : 15:20 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

ขายพร้อมรีโมทของเเท้หายากมากๆ
รีโมทถ้าแยกราคาประมาณ 2,000 up

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 14
เพิ่มข้อความเมื่อ : 15:20 03/03/2026
ขายเครื่องเล่นเทป Dat SONY DTC-57ES สภาพสวยพร้อมใช้งาน เสียงดีมาก Made in Japan

สวย หรู เสียงดีมาก

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 15
เพิ่มข้อความเมื่อ : 15:21 03/03/2026
ขอขอบคุณทุกท่านที่ไว้วางใจ และสนับสนุนเสมอมาโดยตลอด

ขอแนะนำแฟนเพจ พูดคุยสอบถาม จองสินค้า โดยตรงกับผมได้อีกช่องทางครับ
Fan page: >>> https://www.facebook.com/SmartVintage

ของที่ขายทุกชิ้นชอบเป็นการส่วนตัว พยายามคัดเลือกรุ่น-สภาพที่ดีมาสะสม
ของบางรุ่นเป็นรุ่นที่คุ้มค่าเมื่อเทียบกับรุ่นอื่นในราคาเดียวกัน
บางรุ่นเป็นรุ่น Top ที่ท่านไม่ต้องลองผิดลองถูก ไม่ต้องซื้อๆ-ขายๆ Short Cut ในการเล่นได้เลย
ของที่ฝากขาย ส่วนมากผู้ฝากจะขายราคาต่ำกว่าที่ซื้อมา ผมได้เทสว่าสมบูรณ์แล้วจึงลงขายให้ครับ
สนใจติดต่อ ชยธร 091-194-5555 เฉพาะเวลา 10.00-22.00 น. เท่านั้น (นอกเวลารบกวน sms)
**ของทุกชิ้นไม่ได้บอกราคามากๆเพื่อมาลดเยอะๆ ดังนั้นหากท่านจะมารับของเองแล้วต่อราคาเยอะๆ กรุณาอย่ามา เพราะจะเสียเวลา
ของชิ้นไหนระบุว่าไม่ลด-งดต่อ ก็กรุณาอย่าต่อ **
***ภาพจริงทุกภาพ ไม่มีการตกแต่งภาพให้สวยเกินจริง ภาพไหนเป็นภาพแทนจะระบุไว้ให้ทราบ***
****สำหรับนักเล่นที่ซื้อของผมไปหากต้องการช่างผู้ชำนาญการในการบำรุงรักษายินดีแนะนำให้ครับ****

ของ Vintage อาจจุกจิกเรื่องการดูแลบ้าง แต่ทุกเครื่องหากรักษาและใช้แบบถนอมก็อยู่ได้ยาวนาน อาจมีต้องซ่อมบำรุงบ้างเป็นธรรมดาของใหม่ก็มีโอกาสเสีย
แต่สิ่งที่ท่านจะหาไม่ได้จากของใหม่ๆก็คือ "คุณค่า" ที่แม้ท่านมีเงินมากแค่ไหน ก็กำเงินเข้าร้านทั่วๆไปหาซื้อไม่ได้ "ถ้าไม่มีคนขาย"

*****ยินดีรับแลกเปลี่ยนเครื่องเสียง เพื่อแบ่งปันประสบการณ์ในการฟัง ตามตกลงครับ*****

เงื่อนไขการเทรด (เปลี่ยนสินค้า)
- ของที่มาเทรดต้องสภาพสมบูรณ์ ไม่เสีย สภาพสวยจะดีมาก และมาส่งให้ที่บ้านผมเท่านั้น
- ของที่ซื้อไปเอามาเทรดได้โดยหักค่าเสื่อม 30% ของราคาที่ท่านซื้อไป และคิดราคาของที่ท่านอยากมาเทิร์นในราคาเต็ม
- ของที่ซื้อไปเอามาเทรดได้โดยรับเฉพาะที่ซื้อไปแล้วมากกว่า 1 ปี
- ทั้งหมดอยู่ที่ความพอใจ ขอสงวนสิทธิ์ไม่รับเทรดได้ทุกรณี
- ท่านที่เทรดของเปลี่ยนไปมา ขอความกรุณาอย่าทำ

เงื่อนไขการรับซื้อคืน
- ไม่รับซื้อคืนทุกกรณี

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 16
เพิ่มข้อความเมื่อ : 15:21 03/03/2026
ขอแนะนำแฟนเพจ พูดคุยสอบถาม จองสินค้า โดยตรงกับผมได้อีกช่องทางครับ
https://www.facebook.com/SmartVintage

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 17
เพิ่มข้อความเมื่อ : 15:21 03/03/2026
พบเครื่องเสียงอีกหลายรายการครับ
https://www.noom-hifi.com/post/view/98381

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ : 18
แก้ไขล่าสุด : 15:28 03/03/2026
ตัวอย่างคลิป เทสระบบ ลองชมและฟังประกอบการตัดสินใจครับ
*คลิปจากมือถือ ไม่สามารถเก็บรายละเอียด-ความถี่เสียงได้ครบ สู้การฟังจากหูไม่ได้ครับ*

https://www.facebook.com/reel/1867790473910623

https://www.facebook.com/reel/1239674798307426

https://www.facebook.com/reel/2097511151040598

https://www.facebook.com/reel/915862997505269

https://www.facebook.com/reel/34211727155109500

Record Test >>
https://www.facebook.com/reel/893662066815586

ผู้เพิ่มข้อความ : Chayatorn
เพิ่มข้อความ
