Description

Stereo records sound better on a McIntosh. McIntosh famous flexibility has been designed in and all desirable control facilities have been incorporated.

The MAC1700 wont go out of date because of a lack of flexibility. The preamplifier has 16 silicon planar transistors. High thermal stability, low noise and superior high frequency response make the added cost of silicon planar transistors worth the investment.

Low distortion and noise free reception from distant stations are the expected from a McIntosh. High sensitivity is the result of meticulous engineering and manufacturing superiority.

Outstanding stereo tapes are made with the MAC1700. The multiplex decoder and SCA filters guarantee the absolute best in FM stereo.

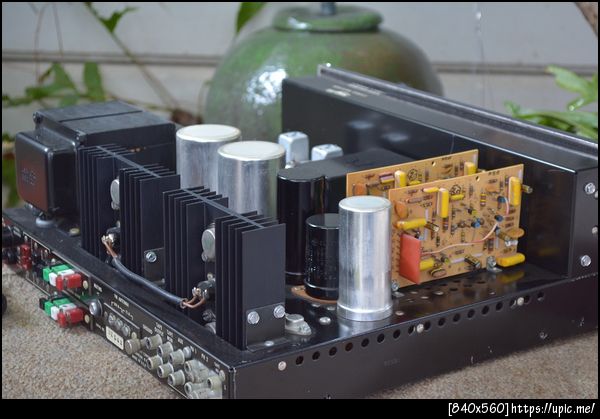

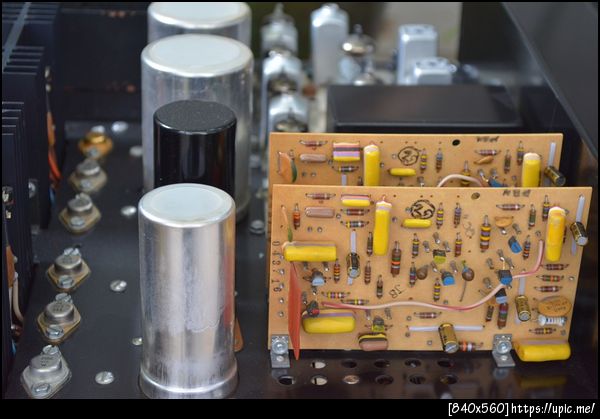

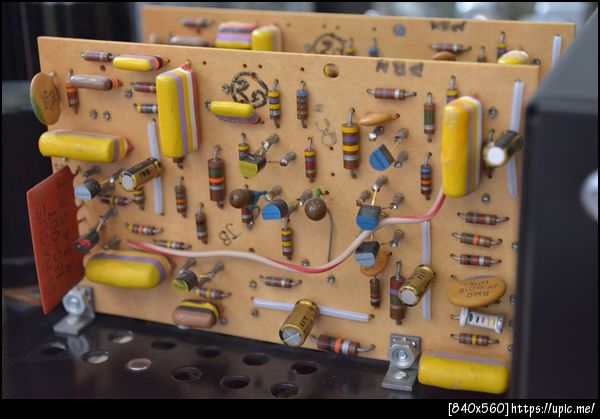

Two solid state 40 watt power amplifiers are the heart of the stereo instrument. Engineering innovation has again shown the way to McIntosh leadership in performance and protection. The MAC1700 is fail safe, regardless of the speaker load.

McIntosh believes in maximum return of your investment for a longer period of time. The sophisticated beauty arid the conservative appearance assures you that the styling is not dated.

Specifications

Tuning range: FM

Power output: 40 watts per channel into 8 Ohm (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.25%

Damping factor: 100

Input sensitivity: 2.4mV (MM), 300mV (line)

Signal to noise ratio: 76dB (MM), 75dB (line)

Speaker load impedance: 4 Ohm to 8 Ohm

Dimensions: 16 x 5.5 x 14.5 inches

Weight: 34lbs

Year: 1967

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.
