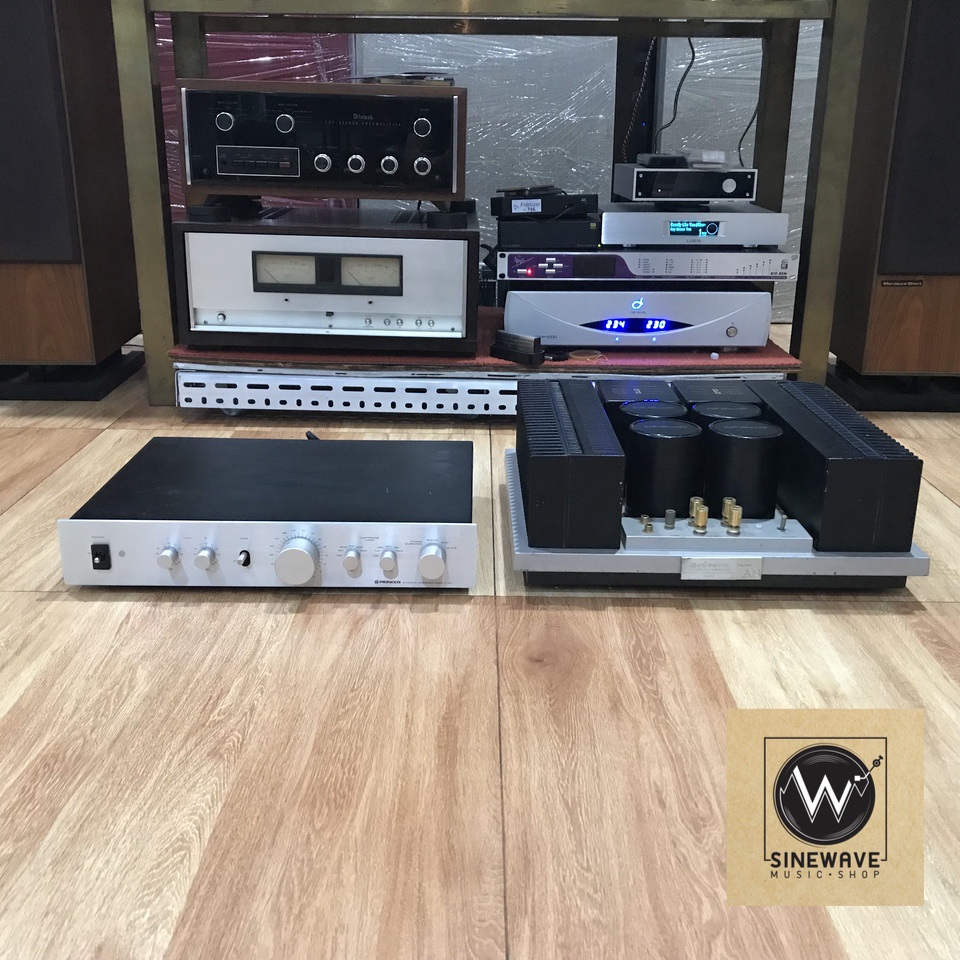

ขาย Pre + Power ยี่ห้อ Pioneer รุ่น C-21 + M-25 (Made in Japan) ราคา 24,500บาท
ไฟ 100Volts +++มีหม้อแปลง 100Volts ขาย กรุณาโทรสอบถาม+++
เป็นชุด ปรี พาวเวอร์ ที่คู่กันจากโรงงานของ Pioneer

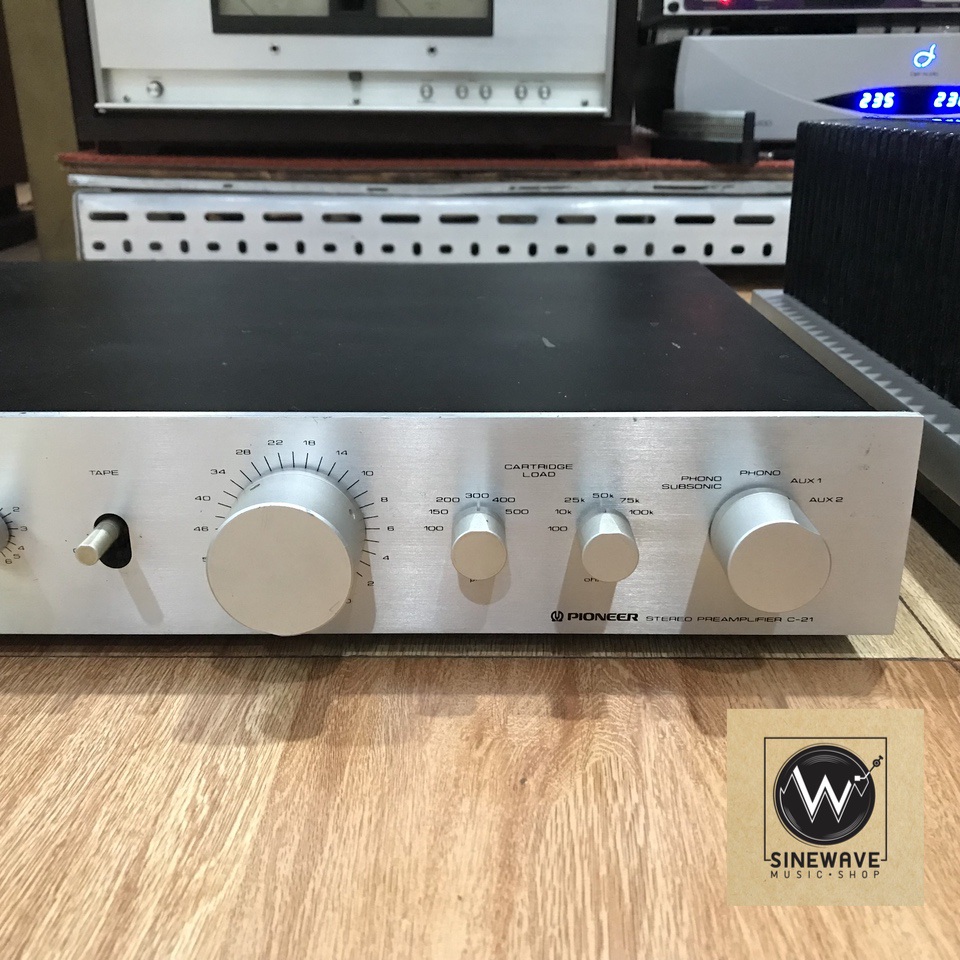

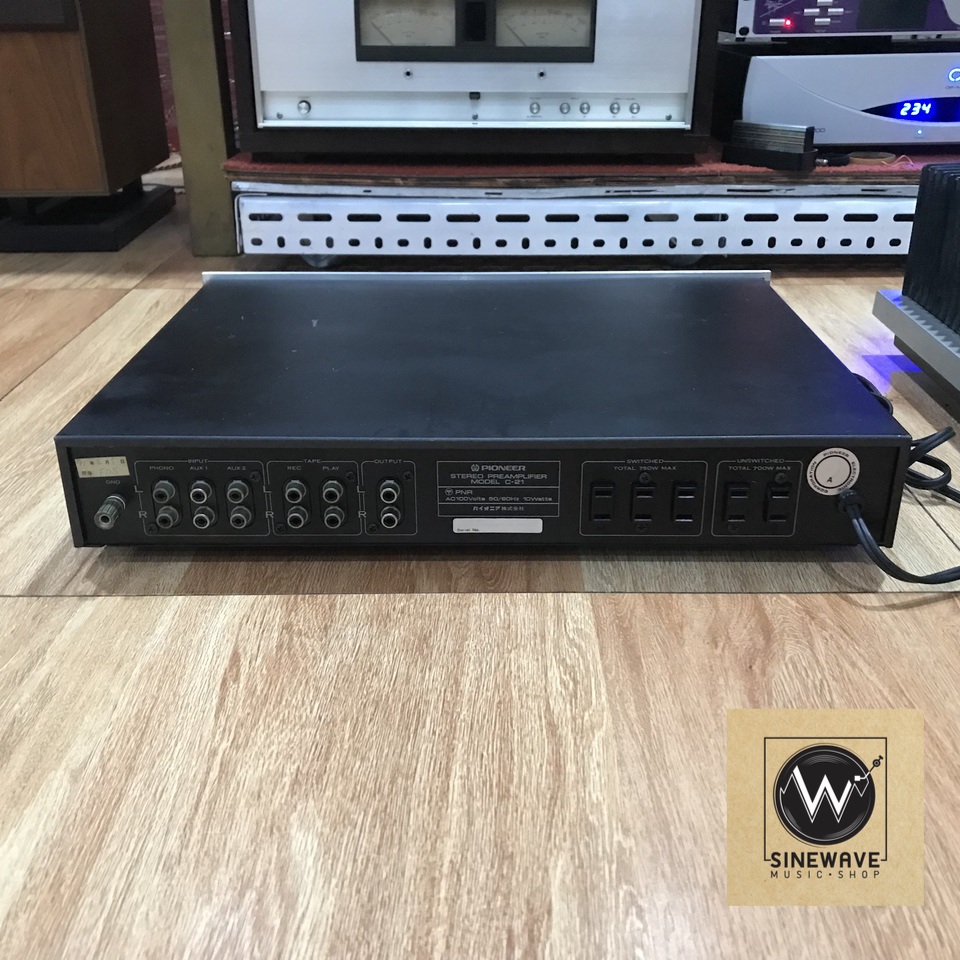

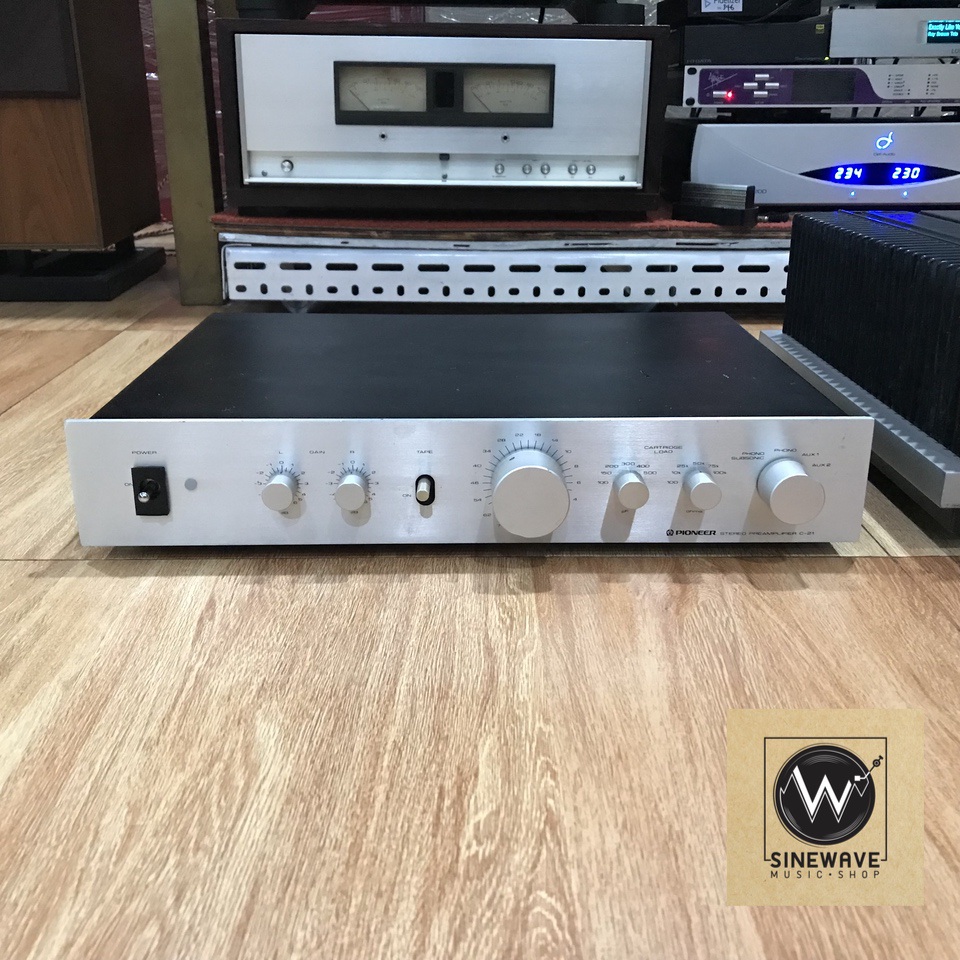

โดยปรี ออกแบบมาเป็น Flat Preamp จะไม่มีวงจร EQ เพื่อมาบิดเบือนสัญญาน และต้องการให้มี Noise ในสัญญานให้ต่ำที่สุด

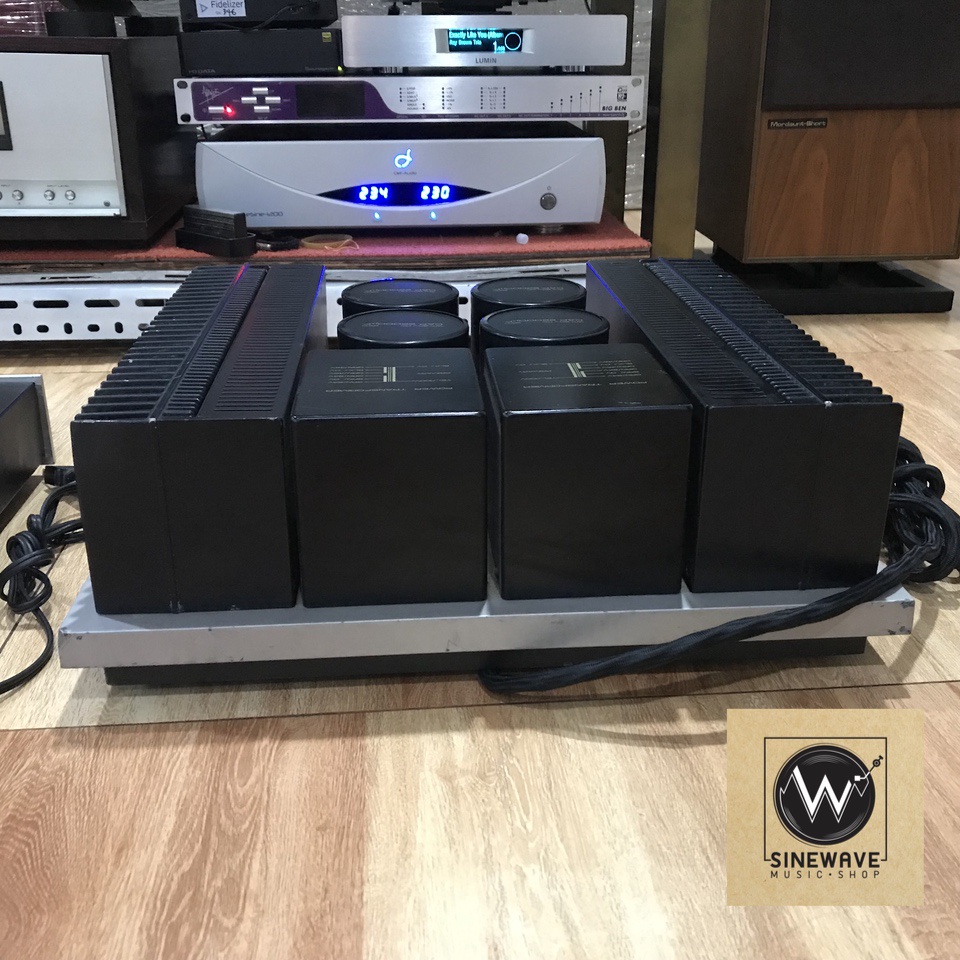

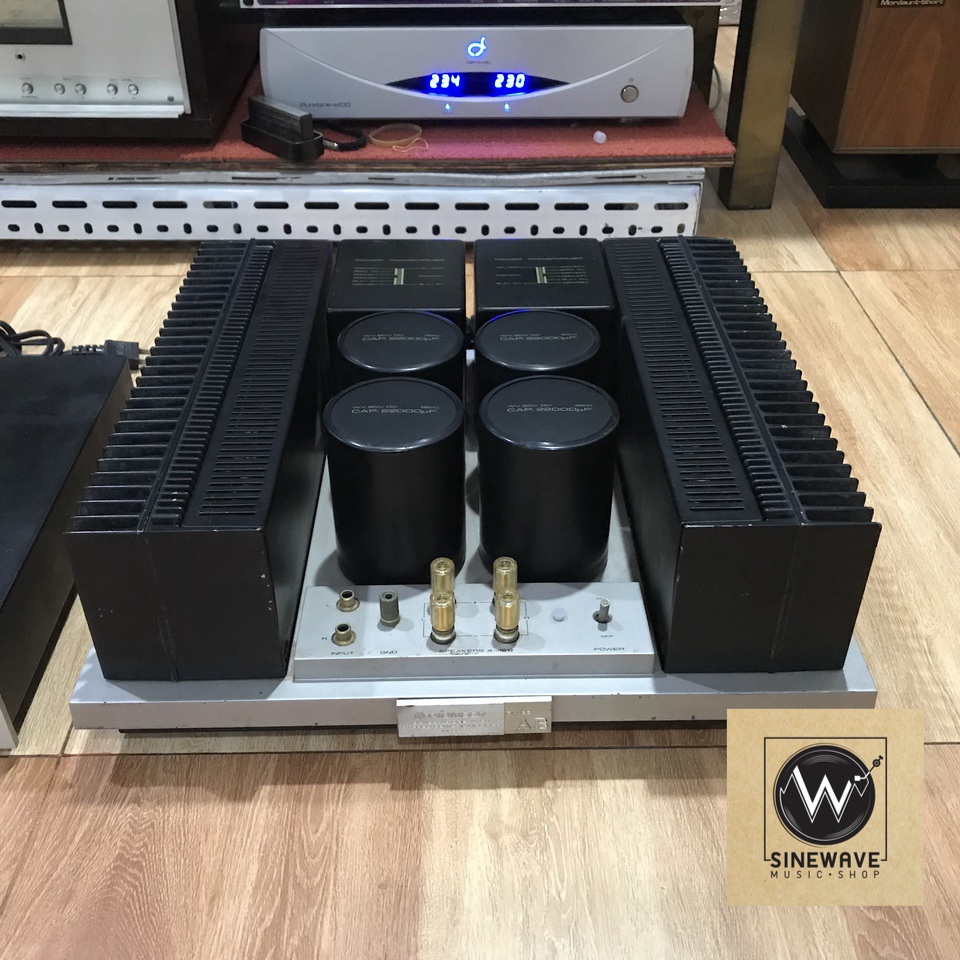

Power ออกแบบเป็นวงจรแบบ AB กำลังขับ 120W + 120W @ 8 Ohms
โดยออกแบบมาให้มีกำลังสูงที่สุด ในขณะเดียวกัน ก็มี Noise ที่ต่ำที่สุดเช่นกัน
ทดสอบแล้ว ใช้งานได้ครบทุกฟังค์ชั่น
Model rating
Model Stereo power amplifier
Circuit method First stage differential current mirror load 3 stages Darlington
parallel push-pull pure complementary OCL circuit
(Class AB operation, DC amplifier configuration)
Effective output (both channels drive)
8Ω: 120W + 120W (5Hz-30kHz, harmonic distortion 0.01%)
120W + 120W (5Hz-80kHz, harmonic distortion 0.05%)
4Ω: 120W + 120W (5Hz-20kHz, harmonic distortion 0.02%)
Harmonic distortion factor (5Hz-30kHz, 8Ω) Effective output: 0.01%
60W output: 0.01%
1W output: 0.007%
Intermodulation distortion factor (50Hz: 7kHz = 4: 1, 8Ω) Effective output: 0.006%
60W output: 0.005%
1W output: 0.005%
Output bandwidth (IHF, both channels drive) 5Hz to 45kHz (distortion rate 0.01%)
5Hz to 100kHz (distortion rate 0.05%)
Frequency characteristic 5Hz-200kHz +0 -1dB (at 1W output)
Input terminal Input: 1V / 50kΩ

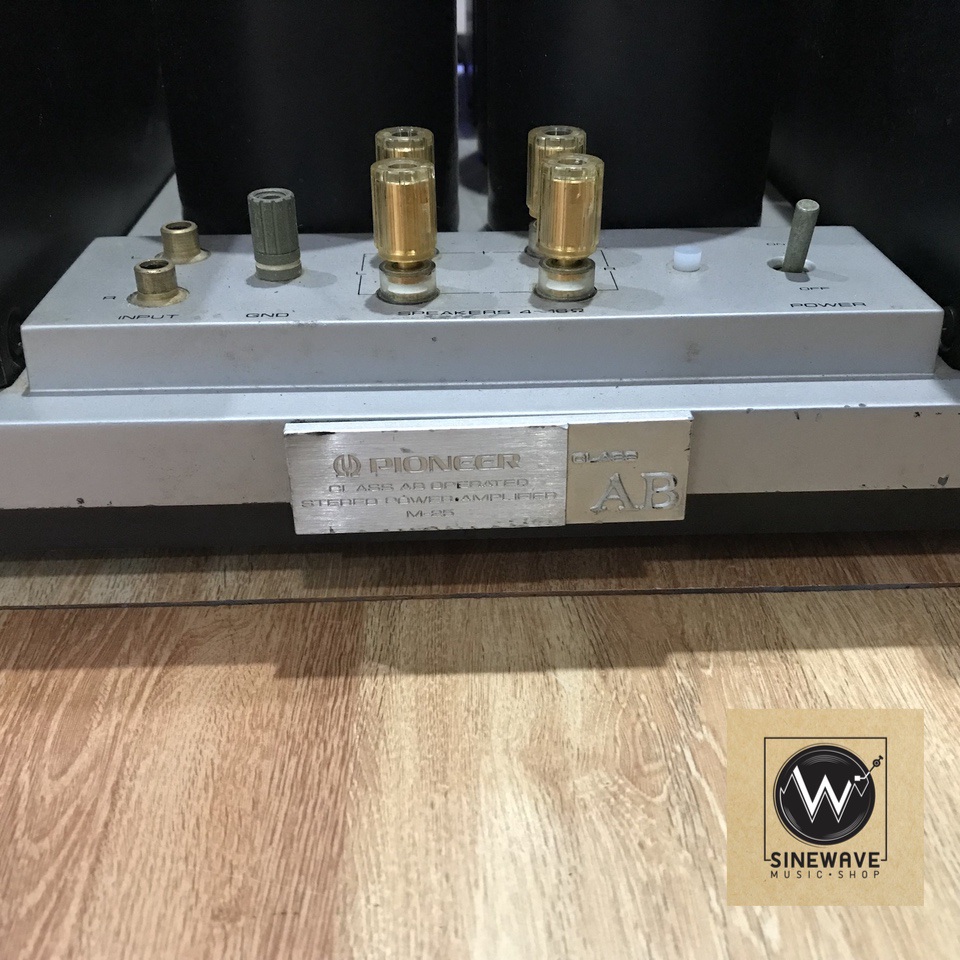

Output terminal Speaker: 4Ω ~ 16Ω
Damping factor 100 (20Hz-20kHz, 8Ω)
Signal-to-noise ratio (IHF, A network, short circuit) 120dB
Channel separation 1kHz: 105dB
100kHz : 70dB
Semiconductor used Transistors: 55
diodes, others: 53
Power-supply voltage 100V, 50Hz / 60Hz
power consumption 280W (Electrical Appliance and Material Control Law)
Maximum power consumption 800W
External dimensions Width 420 x Height 153 x Depth 370 mm
weight
22.5kg
