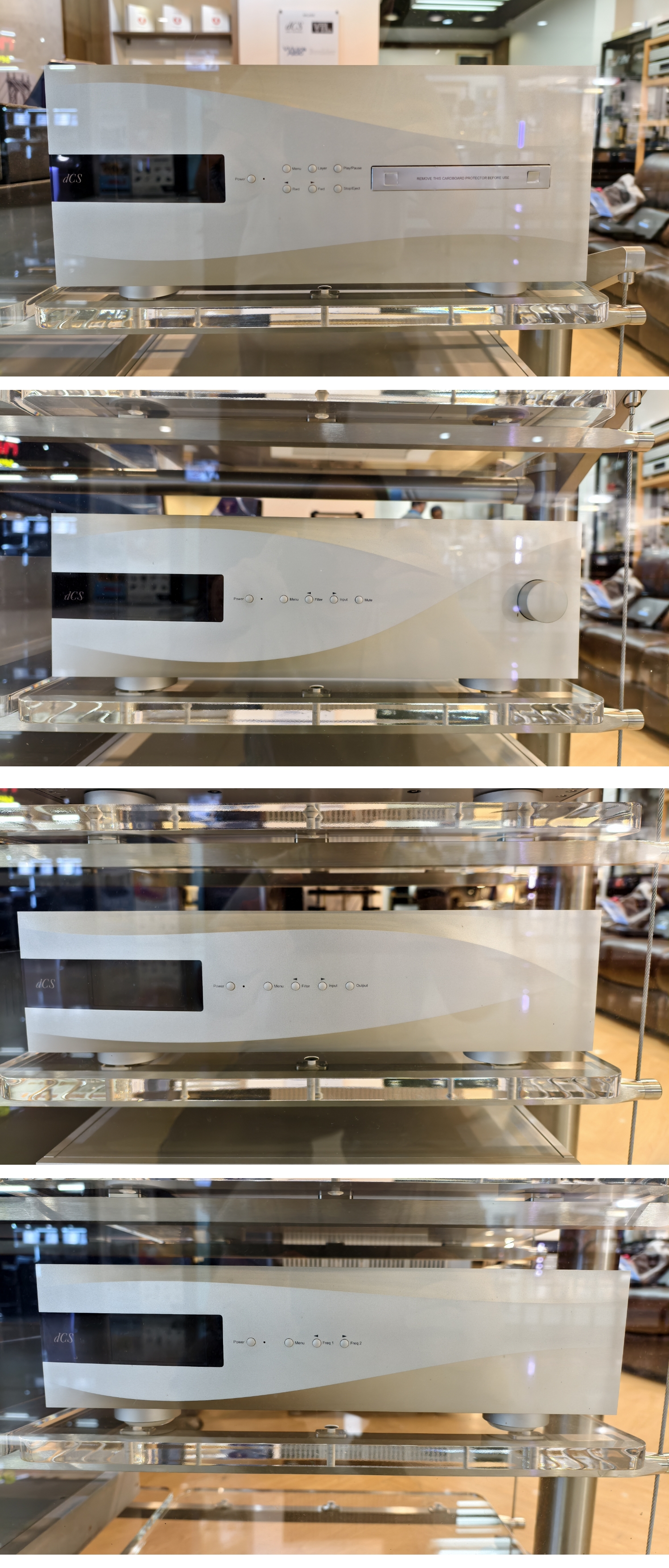

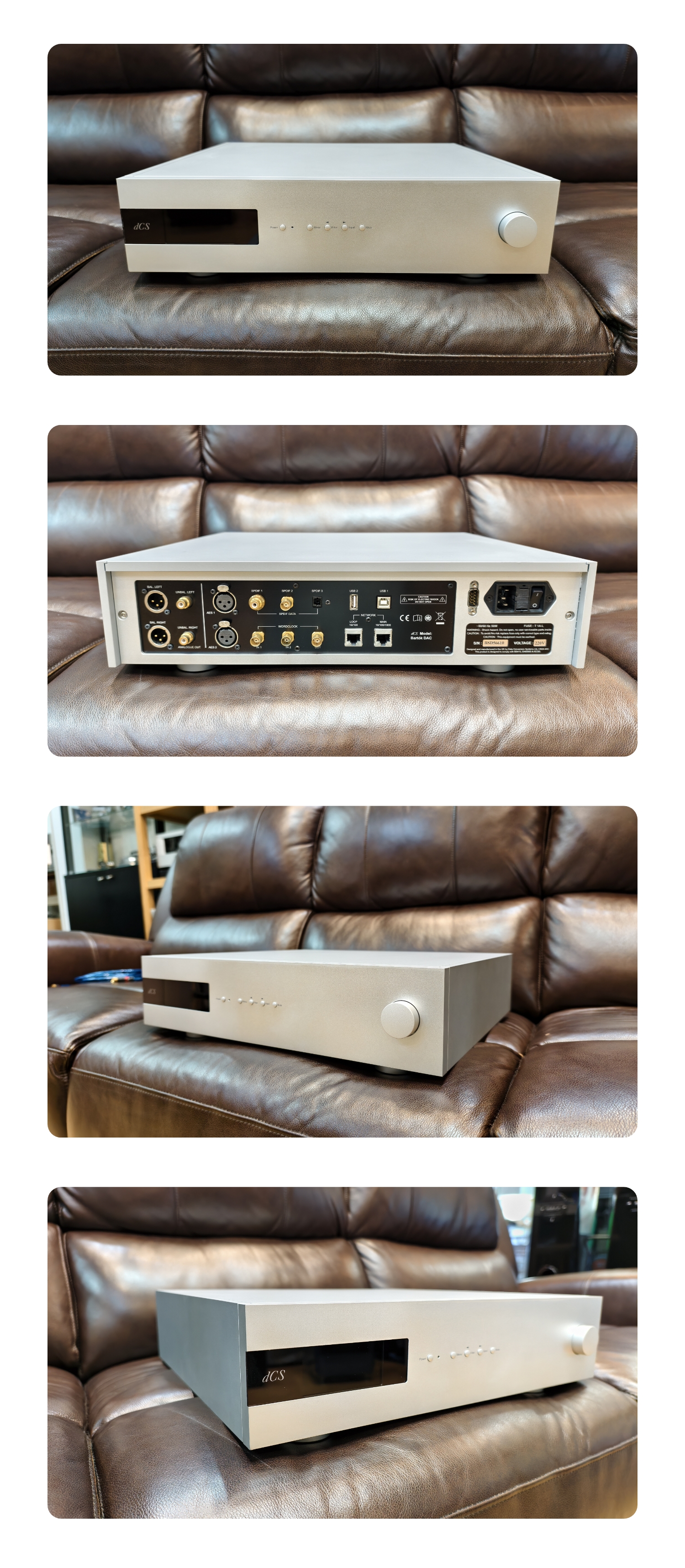

ขาย DAC มือสอง Berkeley Audio Design รุ่น Alpha DAC พร้อม USB Interface ใช้เป็น USB DAC ได้
อัพเกรดบอร์ดเป็น Series 2 แล้ว รองรับไฟล์ MQA ได้ สภาพสวย พร้อมรีโมทและคู่มือ
ราคา 60,000 บาท
สนใจติดต่อ ร้าน MUSE ฟอร์จูนทาวน์ ชั้น 3
สมชาย อินทชาติ
เบอร์โทรและ Line 081-6287662
SPECIFICATIONS
• Input sampling rate: 32kHz to 192kHz
• Ultra low phase noise Precision Clocking at
44.1kHz, 48kHz,
88.2kHz, 96kHz,
176.4kHz
and 192kHz sampling rates ± 100 ppm
• Input word length: 24-bit
• Two channel analog stereo outputs: XLR balanced with pin 2 positive and RCA
unbalanced
• Digital Inputs: AES - XLR, 110Ω; SPDIF1 - BNC, 75Ω; SPDIF2 - BNC, 75Ω;
TOSLINK – Toslink optical connector
• MQA rendering
• HDCD decoding detects 16-bit flag at
44.1kHz or 24-bit flag at all sampling rates
• Multiple digital filter options
• Balanced analog output level: +18dBu (6.15Vrms) maximum = output level 60, +12dBu
(3.1Vrms) = output level 54, or lower recommended
• Unbalanced analog output level:
3.25Vrms maximum = output level 60, 2Vrms = output
level 54, or lower recommended
• Digital volume & balance control:
0.1dB/step with .05dB/step L/R gain trim, 60dB range
• Frequency response at ≥
88.2kHz sampling rates: ±
0.1dB from <
0.1Hz to 35 kHz,
- 3dB at 59kHz for
176.4kHz and 192kHz sampling rates
• Distortion at recommended levels: all products ≤ -120dBFS
• THD+N at maximum level: < -110dBFS
• Firmware field upgradeable through signal inputs
• Enclosure dimensions: 3.5”H X 17.5”W x 12.5”D
• Weight: 30 lbs.
• Mains power: 100/120/240VAC, 50/60Hz
• Power consumption: 25W
