1.Mcintosh MC7106 สภาพดีราคา 55,900.B
2.ANTHEM MCA 525 สภาพดีราคา 69,999.B
สนใจติดต่อ 0816623531

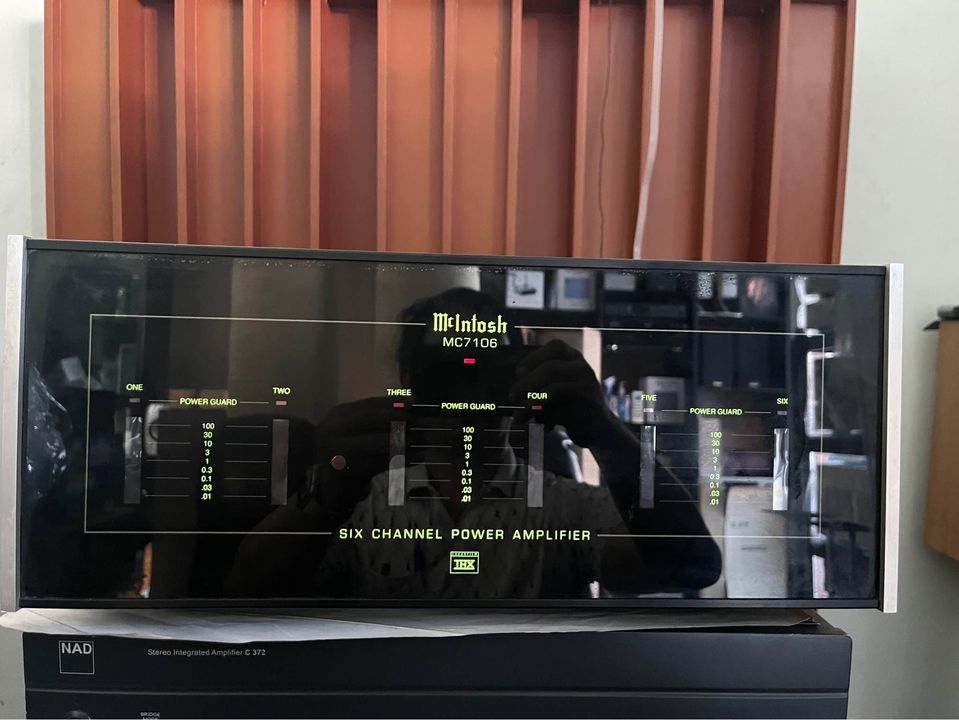

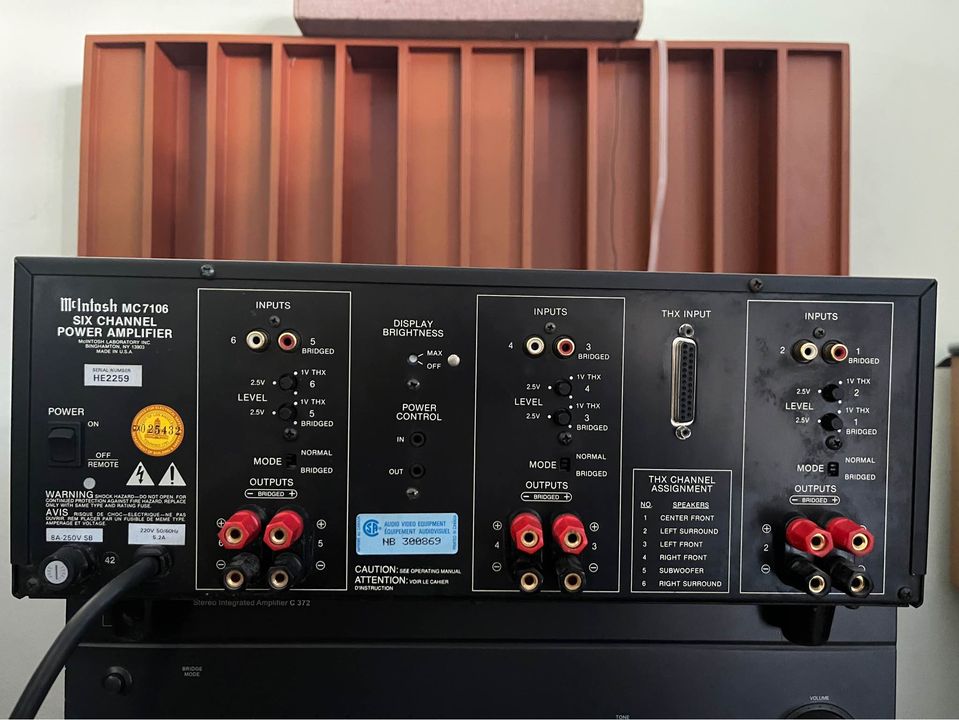

Mcintosh MC7106
SPECIFICATIONS PERFORMANCE LIMITS
Performance limits are the maximum
deviation from perfection permitted for a
Mclntosh instrument. We promise you that
when you purchase an MC7106 from a
Mclntosh franchised dealer, it will be
capable of performance at or better than
these limits.
POWER OUTPUT, SIX CHANNELS
100 watts per channel into 8 ohm loads,
or 160 watts per channel into 4 ohm loads
minimum sine wave continuous average
power output per channel, all channels
operating.
The output RMS voltage is:
28.3V across 8 ohms
25.2V across 4 ohms
POWER OUTPUT,
TWO CHANNELS BRIDGED
320 watts into an 8 ohm load, minimum
sine wave continuous average power output.
The output RMS voltage is:
50.6V across 8 ohms
OUTPUT LOAD IMPEDANCE
8 or 4 ohms, for all six separate channels
8 ohrns, Bridged operation
RATED POWER BAND
20Hz to 20,000Hz
TOTAL HARMONIC DISTORTION
0.005% maximum harmonic distortion at
any power level from 250 mW to rated power
output.
IHF DYNAMIC HEADROOM
8 ohms, 1.8dB
4 ohms, 2.1dB
FREQUENCY RESPONSE
+ 0, -0.25dB from 20Hz to 20,000Hz
+ 0, -3.0dB from 10Hz to 100,000Hz
INPUT SENSITIVITY
1V, (2.5V with Level control at center
detent)
A-WEIGHTED SIGNAL-TO-NOISE RATIO
93dB (113dB below rated output)
INTERMODULATION DISTORTION, SMPTE
0.005% maximum if instantaneous peak
power does not exceed twice the output
power rating.
RATINGS
WIDE BAND DAMPING FACTOR
200 at 8 ohms
100 at 4 ohms
INPUT IMPEDANCE
20,000 ohms
POWER GUARD
Clipping is prevented and THD does not
exceed 2% with up to 14dB overdrive at
1000Hz.
POWER REQUIREMENTS
120V, 50/60Hz, 12A UL/CSA
MECHANICAL
SIZE
Front panel: 17 1/2 inches (44.5cm) wide,
by 7 1/8 inches (18.1cm) high. Depth behind
the front mounting panel is 20 inches
(50.8cm) including clearance for connectors.
Panel clearance required in front of mount-
ing panel is 1 inch (2.54cm).
FINISH
Front panel is glass with gold/teal
nomenclature illumination. Chassis and
chassis cover are black.
WEIGHT
52 pounds (23.6Kg) net, 70 po

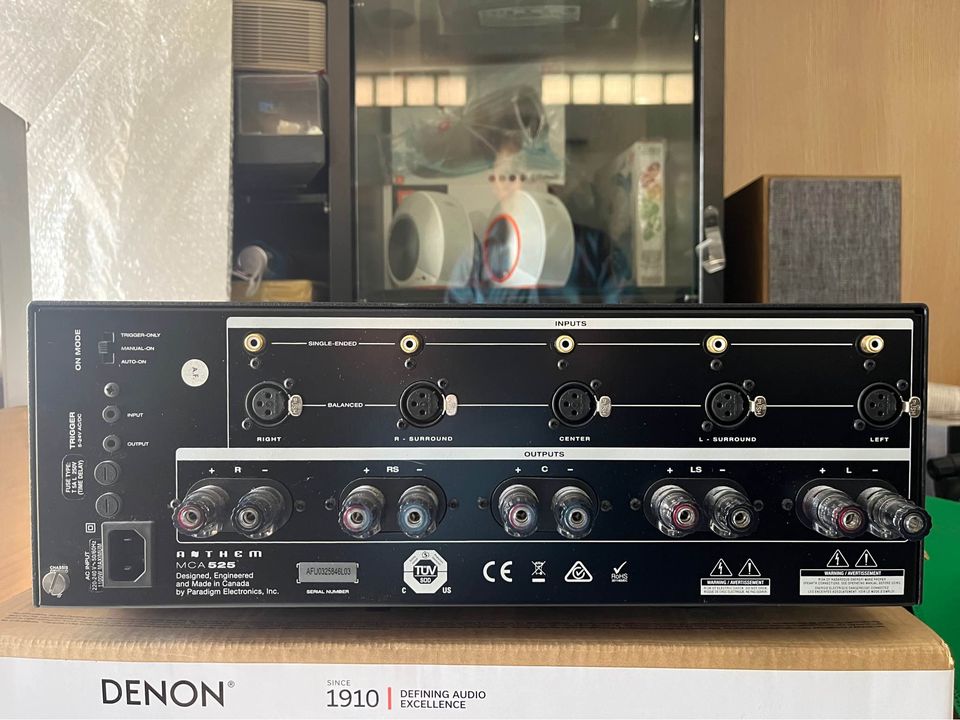

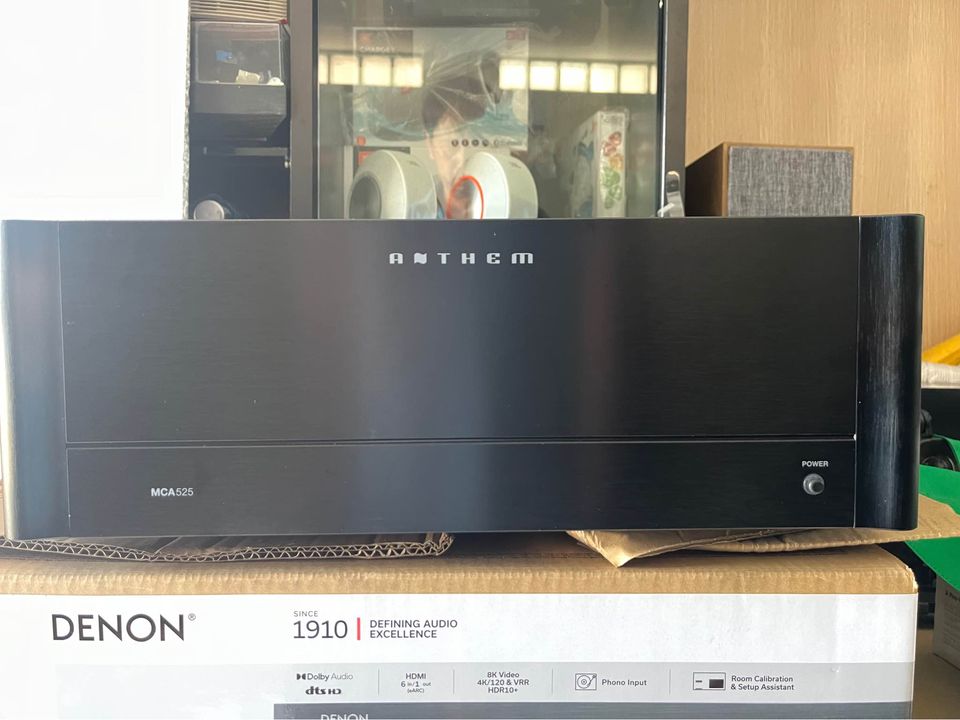

ANTHEM MCA 525

รายละเอียดสินค้า ANTHEM MCA 525
Delivers lower THD (Total Harmonic Distortion) for cleaner, pure sound and lower noise
Completely redesigned for improved audio performance and reliability
Higher current output for lower distortion
Cosmetic match for AVM 60 A/V Preamplifier-Processor
Improved Advanced Load Monitoring system
8 bipolar output devices per channel for less stress on each device
Less than 2 watts standby power consumption
Crafted in Canada

Anthem : MCA 5255-channel power amplifier; 225 watts per channel continuous power into 8 ohms.

Designed to match, engineered for power.New MCA multi-channel amplifiers are Crafted in Canada and perfectly match the new AVM 60 processor & MRX receivers.

To complement the NEW AVM 60 A/V Processor, Anthem introduces the new MCA 525, 325 and 225 power amplifiers. Available in 5, 3 and 2-channel configurations, these new MCA amplifiers feature more robust and efficient power and heavy-duty reliability. The new MCA Series delivers lower THD (total harmonic distortion) for more clean, pure sound and lower noise for a supremely quiet background.

Like all Anthem products the MCA 525, MCA 325 and MCA 225, designed and Crafted in Canada, are like no other amplifiers in the world: custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminum heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry. Superior craftsmanship that is reflected in clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum.

รายละเอียดสินค้า ANTHEM MCA 525
Delivers lower THD (Total Harmonic Distortion) for cleaner, pure sound and lower noise
Completely redesigned for improved audio performance and reliability
Higher current output for lower distortion
Cosmetic match for AVM 60 A/V Preamplifier-Processor
Improved Advanced Load Monitoring system
8 bipolar output devices per channel for less stress on each device
Less than 2 watts standby power consumption
Crafted in Canada

Anthem : MCA 5255-channel power amplifier; 225 watts per channel continuous power into 8 ohms.

Designed to match, engineered for power.New MCA multi-channel amplifiers are Crafted in Canada and perfectly match the new AVM 60 processor & MRX receivers.

To complement the NEW AVM 60 A/V Processor, Anthem introduces the new MCA 525, 325 and 225 power amplifiers. Available in 5, 3 and 2-channel configurations, these new MCA amplifiers feature more robust and efficient power and heavy-duty reliability. The new MCA Series delivers lower THD (total harmonic distortion) for more clean, pure sound and lower noise for a supremely quiet background.

Like all Anthem products the MCA 525, MCA 325 and MCA 225, designed and Crafted in Canada, are like no other amplifiers in the world: custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminum heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry. Superior craftsmanship that is reflected in clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum.
