สภาพดีมีกล่องครบราคา 59,999.B สนใจติดต่อ 0816623531

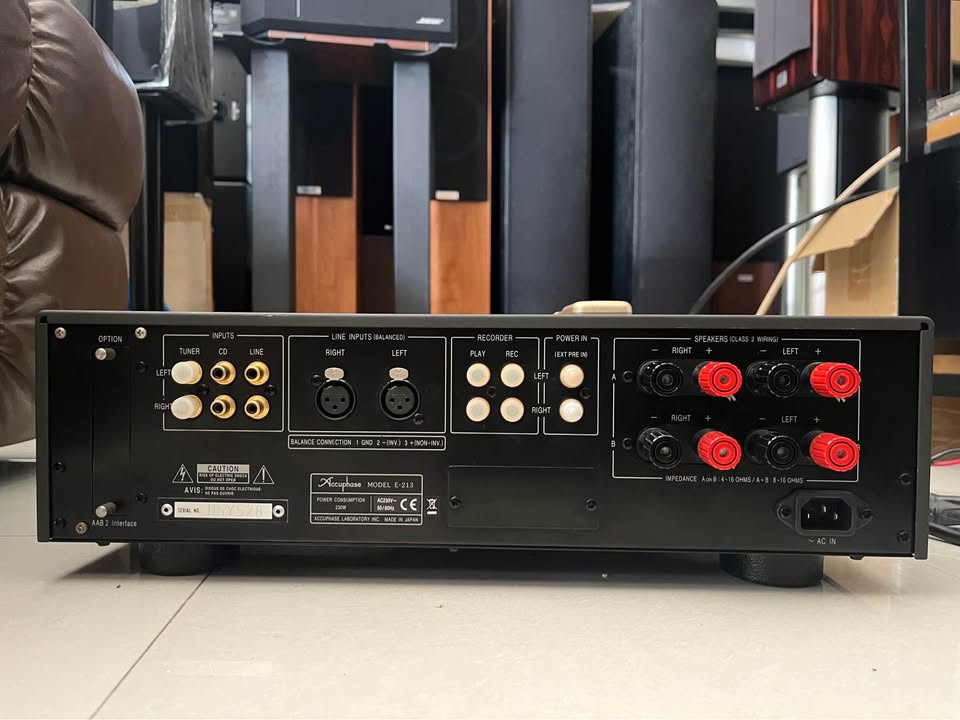

Type Pre-main amplifier
Rated continuous average output (both channel operation, 20 Hz to 20 kHz) 115W/ch (4 Ω)
105W/ch (6 Ω)
90W/ch (8 Ω)
Total harmonic distortion factor (both channel operation, 20 Hz to 20 kHz) 0.04% (4 Ω ~ 16 Ω Load)
IM distortion factor 0.01%
Frequency characteristic Power input:
20 Hz ~ 20 kHz + 0 -0.2 dB (at rated continuous average output)
2 Hz ~ 150 kHz + 0 -3.0 dB at 1W Output
High Level input:
20 Hz ~ 20 kHz + 0 -0.2 dB (at rated continuous average output)
Damping factor 100 (8 Ω load, 50 Hz)
Input Sensitivity / Impedance (Rated Output / EIA1W Output) High Level input : 213mV/22.5mV/20k Ω
Balanced input : 213mV/22.5mV/40k Ω
Main input : 1.07V/113mV/20k Ω
Gain High Level input - output:42dB
Power input - output:28dB
S/N Input Short (A-At rated output / EIA
High Level input:110dB/81dB
Balanced input:92dB/81dB
Main input:123dB/100dB
Tone control Bass (300 Hz) + / - 10 dB (50 Hz)
High tone (3 kHz) : ± 10 dB (20 kHz)
Loudness compensator + 6 dB (200 Hz, Volume -30dB)
Attenuator -20dB
Power meter Logarithmic compression type peak level display, output dB /% display
Load impedance 4 Ω ~ 16 Ω
Headphone port Applicable Impedance : 8 Ω ~ 100 Ω
Pwer 100 VAC, 50Hz/60Hz
Power consumption 43W (no input)
230W (Electrical Appliance and Material Control Law)
345W (at 8 Ω load rated output)
Maximum external dimensions Width 475x Height 150x Depth 422 mm
Weight 18.8kg
Attachment Remote Commander RC-23
AC power cord
Attached Remote Commander RC-23
Remote control system Infrared pulse system
Pwer 3 VDC, 2 AA batteries are used.
Maximum external dimensions 45 mm wide x 136 mm high x 18 mm deep
Weight 85g (including dry batteries)
Optional Board Sold Separately
Digital Input Board DAC-10 (¥ 50,000)
Sampling frequency 32 kHz to 96 kHz, 24 bits
Analog Disk Input Board AD-9 (¥ 30,000)
Gain MM:36dB
MC:62dB
Input impedance MM : 47k Ω
MC : 10 Ω / 30 Ω / 100 Ω Switching
Line Input Board LINE-9 (¥ 6,000)
