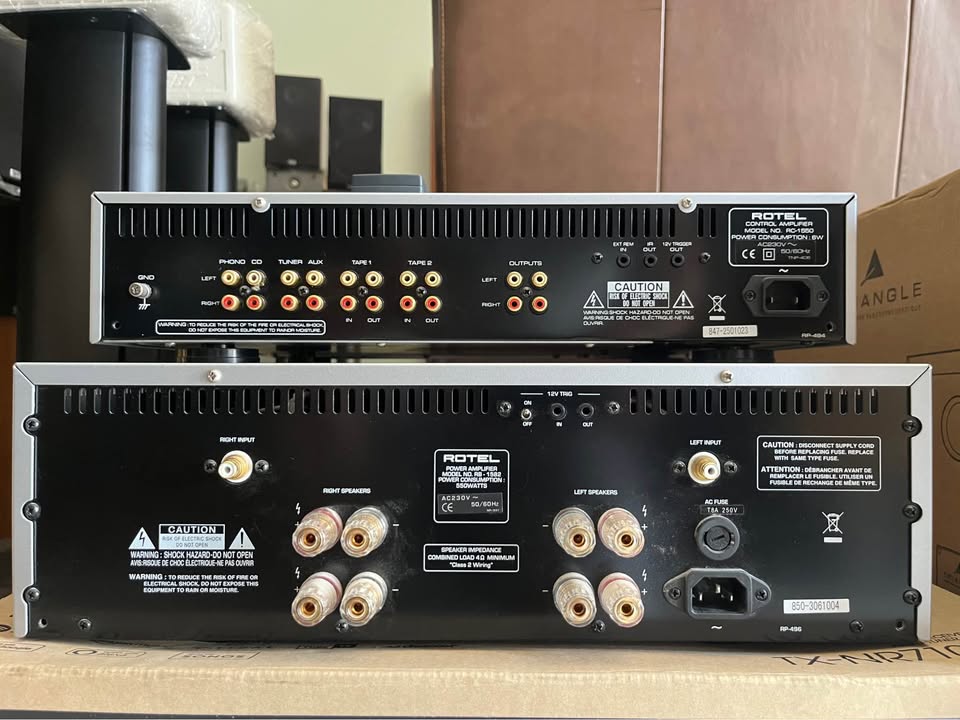

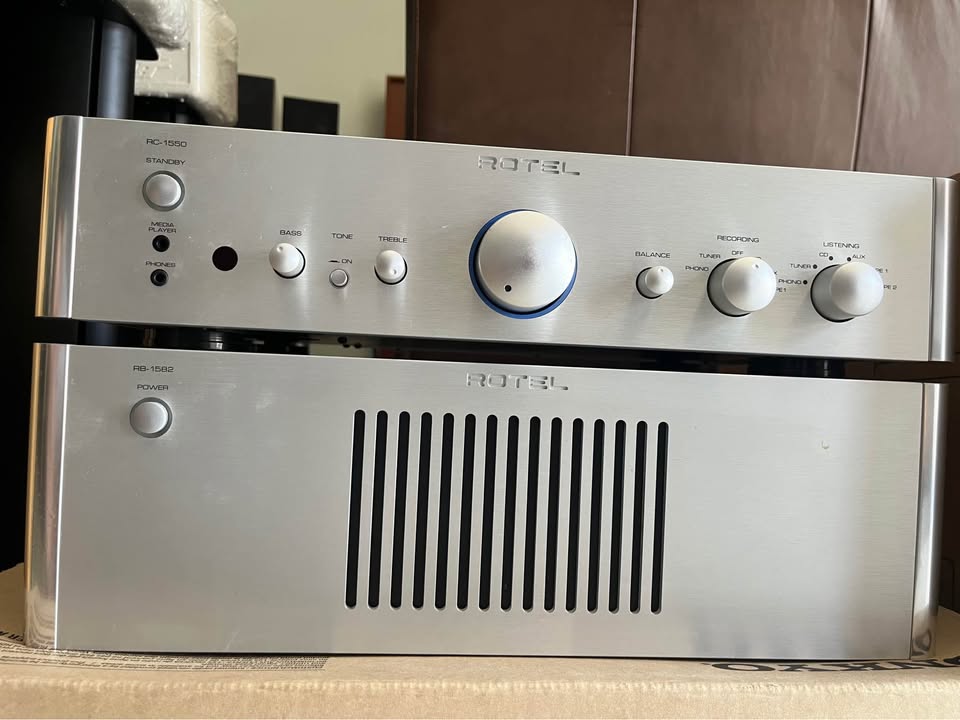

สภาพดีมีรีโมทครบราคา 35,990.B สนใจติดต่อ 0816623531
Model


RB-1582

Power Configurations


2 x 200 watts
(20Hz-20kHz, <0.03%, 8 Ohms)

Watts/Channel


200 watts, all channels driven,
8 ohm load, 20-20kHz

THD (20-20,000Hz) 8 Ohms,
all channels driven


< 0.03%

IM Distortion


< 0.03%

Damping Factor (8 Ohms)


1000

Input Sensitivity / Impedance


1.9V / 12kOhms

Frequency Response (+/-1dB)


15-100kHz (+/-1dB)

S/N Ratio (IHF A) Ohms)


116dB

Power Consumption Ohms)


550 watts

Dimensions (W x H x D) mm


431 x 140 x 406 mm

Dimensions (W x H x D) in


17 x 5 1/2 x 16 in

Front Panel Height


3U (5.25”)

Shipping Weight


40.7 lbs.

Rotel of America
54 Concord St.
N. Reading, MA 01864
USA
T +1 978 664 3820
F +1 978 664 4109
www.rotel.com
The Rotel Co. Ltd.
10-10 Shinsen-Cho
Shibuya-Ku,
Tokyo 150, Japan
Rotel Europe
Dale Road
Worthing
West Sussex BN11 2BH, UK
T +44 (0) 1903 221 763
F +44 (0) 1903 221 525
Description
The RC-1550 delivers an extraordinary level of performance. Its rock-solid power supply is comprised of a custom made toroidal
transformer and select grade BHC slit foil capacitors. RC-1550 features six line-level inputs in addition to a phono input for moving
magnet cartridges. A convenient contour control allows easy and repeatable timbre adjustments. With two sets of main outputs, a 12
volt “trigger “ jack, and a Rotel-system remote control for both the pre-amplifier and a companion Rotel CD, tuner, or DVD player, the
RC-1550 brings the flexibility and sound quality of Rotel separates within easy reach.
RC-1550
Classic Stereo Preamplifier
Specifications
0.006%
0.006% @ 1V out
1.2mV / 68kOhms
150mV / 24kOhms
70mV
1V / 100 Ohms
20-20kHz (+/-0.05dB)
4-100kHz (+0, -3dB)
THD (20-20,000Hz) 8 Ohms,
all channels driven
IM Distortion
Input Sensitivity & Impedance
Phono (MC)
Phono (MM)
Line Level Inputs
Phono Overload (MC/MM)
Output Sensitivity / Impedance
Frequency Response
Phono Input
Line Level Input
Tone / Contour Controls
Bass
Treble
Signal to Noise Ratio (IHF “A”)
Phono (MC/MM)
Line Level
Power Consumption
Dimensions (W x H x D) mm
Dimensions (W x H x D) in
Front Panel Height
Shipping Weight
+3, +4dB at 100Hz
+3dB at 10kHz
70dB
95dB
10 watts
431 x 99 x 337 mm
17 x 4 x 13.5 in
2U (3.5”)
15.8 lbs.
