สภาพดีราคา 35,900.B สนใจติดต่อ 0816623531
11English
Specifications
Total Harmonic Distortion (20Hz-20kHz) < 0.006%
Intermodulation Distortion (60 Hz : 7 kHz, 4:1) < 0.006% at 1V output
Input Sensitivity / Impedance
Phono 1.4 mV / 68 kOhms
Line Level 170 mV / 24 kOhms
Phono Overload 70 mV
Output Sensitivity / Impedance 1 V/ 100 Ohms
Usable Headphone Impedance 8 – 2,000 Ohms
Frequency Response
Phono Input 20Hz – 20kHz, ±0.5dB
Line Level Input 4Hz – 100kHz, +0, –3dB
Tone Controls
Bass ±6dB at 100Hz
Treble ±6dB at 10kHz
Signal to Noise Ratio (IHF “A” weighted)
Phono 70 dB
Line Level 95 dB
Power Requirements
USA Version 120 Volts, 60 Hz
European Version 230 Volt, 50 Hz
Power Consumption 6 Watts
Standby Power Consumption 1 Watts
Dimensions (W x H x D) 431 x 99 x 337 mm
17 x 4 x 13 1/4”
Front Panel Height 2U / 88.1mm / 31/2”
Weight (net) 6.2 kg, 13.64 lbs.
RB-1582

Power Configurations


2 x 200 watts
(20Hz-20kHz, <0.03%, 8 Ohms)

Watts/Channel


200 watts, all channels driven,
8 ohm load, 20-20kHz

THD (20-20,000Hz) 8 Ohms,
all channels driven


< 0.03%

IM Distortion


< 0.03%

Damping Factor (8 Ohms)


1000

Input Sensitivity / Impedance


1.9V / 12kOhms

Frequency Response (+/-1dB)


15-100kHz (+/-1dB)

S/N Ratio (IHF A) Ohms)


116dB

Power Consumption Ohms)


550 watts

Dimensions (W x H x D) mm


431 x 140 x 406 mm

Dimensions (W x H x D) in


17 x 5 1/2 x 16 in

Front Panel Height


3U (5.25”)

Shipping Weight


40.7 lbs.

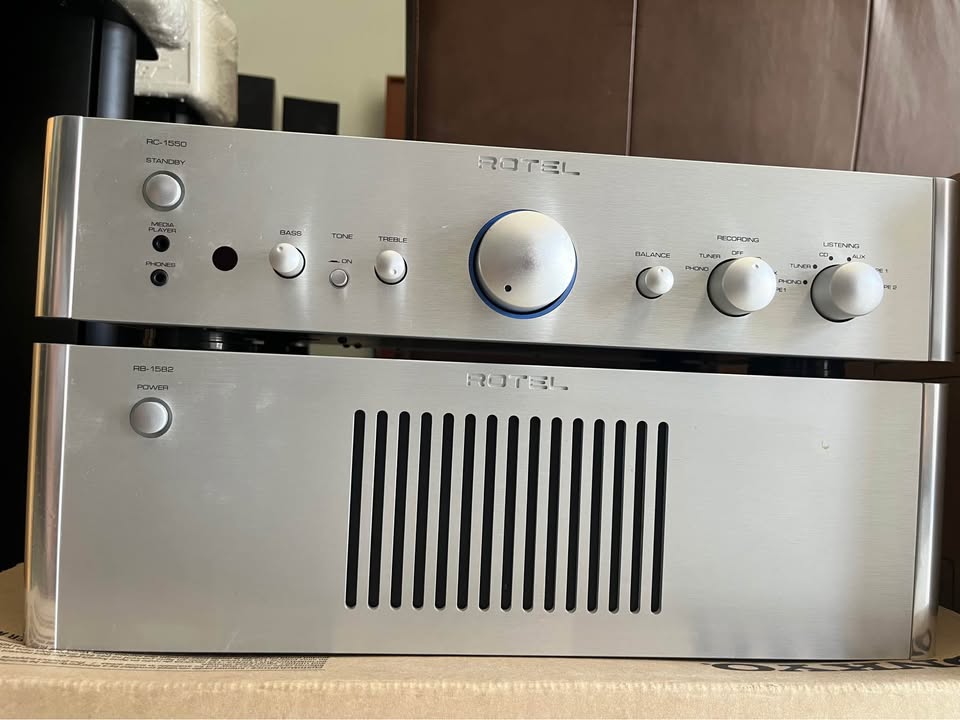

PRE + POWER ROTEL RC-1550+RB-1582
