ประกาศ : 84509
ลำโพงซัพ 3 ตู้
แก้ไขล่าสุด : 17:27 03/07/2025
1.SVS SB 4000 สภาพดีราคา 44,400.B
2.XTZ 99 W 12.16 สภาพดีราคา 19,900.B
3.JAMO C 80SUB สภาพดีราคา 10,900.B
สนใจติดต่อ 0816623531

ผู้โพสต์ : ขอนแก่นไฮไฟ
อ่าน 81 | ตอบ 4
เพิ่มข้อความ : 1
เพิ่มข้อความเมื่อ : 17:26 03/07/2025

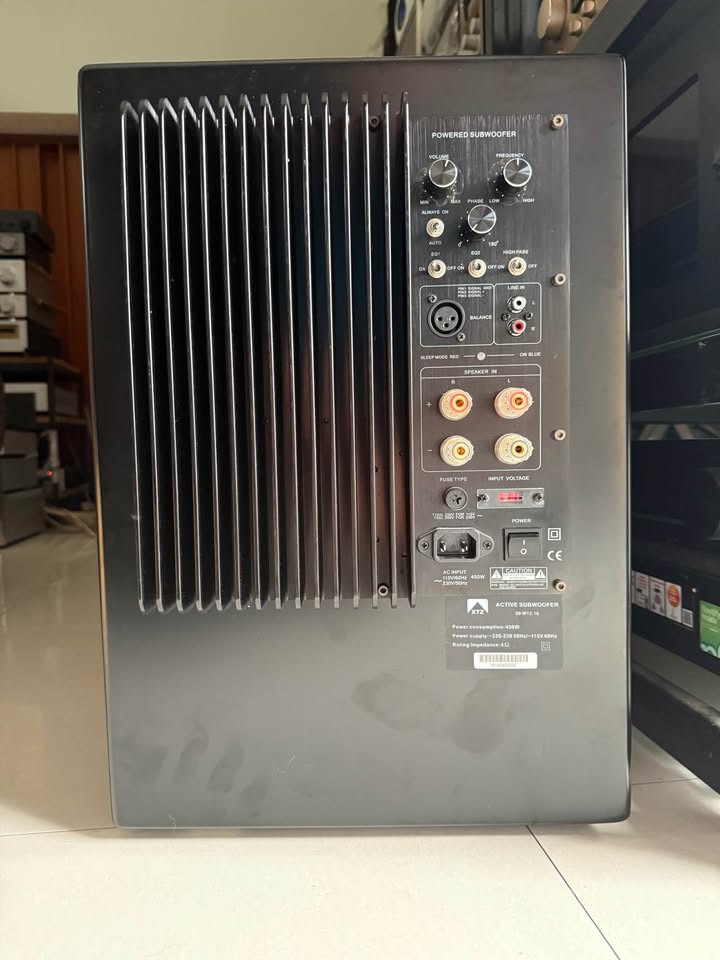

XTZ 99 W12.16 subwoofer
Drive Unit: One 12in non-pressed paper fibre cone woofer with rubber surround
Enclosure: Ported
Frequency Response: Down to at least 24Hz but will play even lower in-room
On board power: 300W RMS
Dimensions: 350(w) x 515(h) x 400(d)mm
Weight: 31Kg

ผู้เพิ่มข้อความ : ขอนแก่นไฮไฟ
เพิ่มข้อความ : 2
เพิ่มข้อความเมื่อ : 17:30 03/07/2025
XTZ 99 W 12.66

ผู้เพิ่มข้อความ : ขอนแก่นไฮไฟ
เพิ่มข้อความ : 3
เพิ่มข้อความเมื่อ : 17:31 03/07/2025

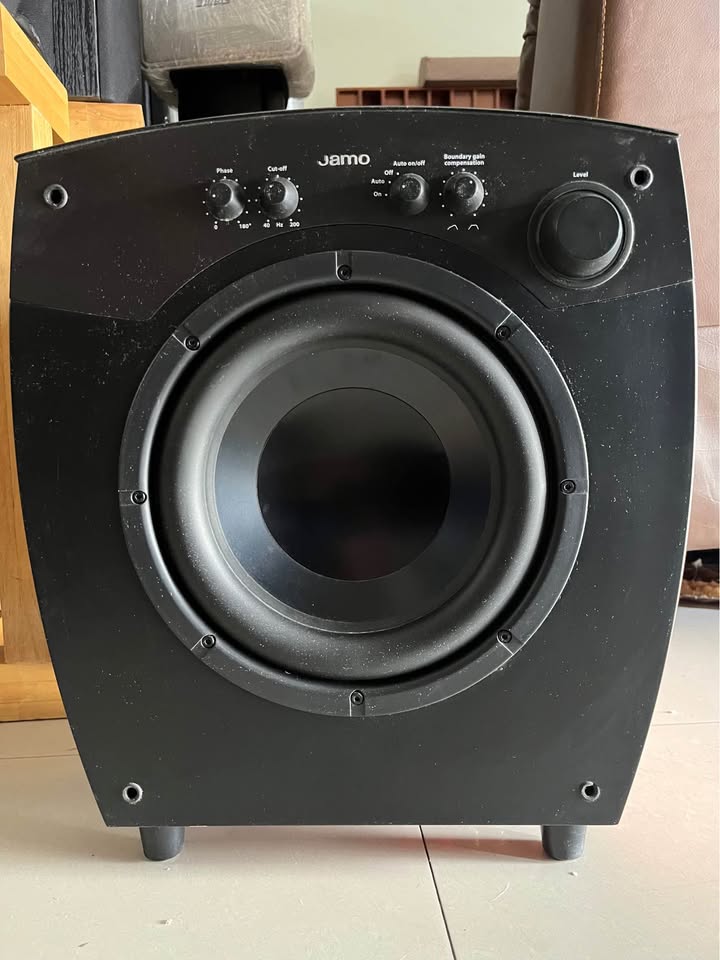

Name ............................................................................................ C 80 SUB
System .......................................................................................Closed box
Woofer (In / mm) ...................................................................2 x 10 / 254
Amplifi er rated output (W) ............................................................1800
Frequency range (Hz) ...........................................................20 – 200Hz
Cut off frequency (Hz) ................................................................Variable
Impedance (Ohm) ................................................................................22k
Phase ................................................................................................ Variable
Boundary Gain Comp. ................................................................Variable
Limiter ...................................................................................................... Yes
Auto/on/off switch ............................................................................... Yes
12V trigger .............................................................................................. Yes
Motional Feedback .............................................................................. Yes
Dimensions HxWxD
In ......................................................................................17.6 x 15.4 x 17.0
Mm .....................................................................................447 x 390 x 43

ผู้เพิ่มข้อความ : ขอนแก่นไฮไฟ
เพิ่มข้อความ : 4
เพิ่มข้อความเมื่อ : 17:33 03/07/2025

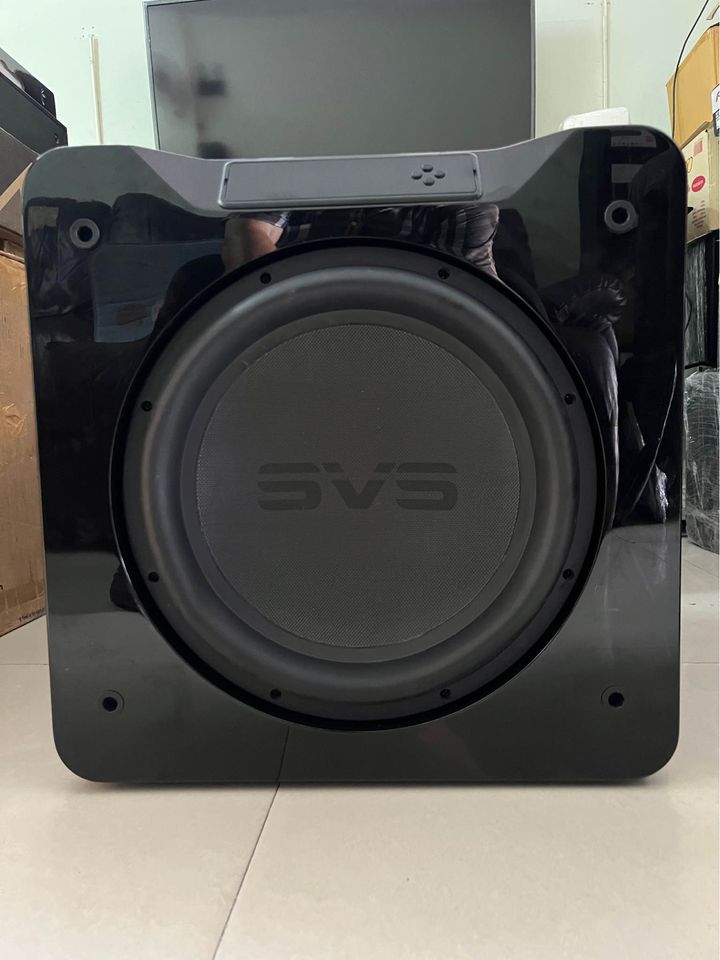

Subwoofer Specs:

Premium Black Ash and Piano Gloss Black finish options
Protective non-resonant steel mesh grille
Front-firing 13.5" driver
Rear-mounted amplifier
Screw-in rubber feet
Robust Medium Density Fiberboard(MDF) cabinet construction

Cabinet Dimensions (without grille): 18.3” (465mm) H X 17.8” (453mm) W X 18.6” (471.3mm) D
Cabinet Dimensions (with grille): 18.3” (465mm) H X 17.8” (453mm) W X 20.9” (530mm) D
Shipped Dimensions: 23.5” (598mm) H X 23.5” (598mm) W X 28” (712mm) D
Weight (unboxed): 102.3 lbs. (46.4 kg)
Shipped Weight: 117.8lbs (53.45kg)

Driver Specs:

High-performance SVS 4000 Series Subwoofer Driver - optimized for sealed cabinet design.
Proprietary 13.5” Driver with finely tuned Overhung Motor Configuration
43lb (19.5kg) pound Woofer with 37.7lb (17.1kg) pounds for the motor
Overhung 52mm Xmax, 76.2mm Xmech precision aligned excursion
8-layer aluminum flat wire edge wound 3” voice coil for ultra-low distortion, efficient heat dissipation, exceptional linearity and nearly zero power compression.
Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible.
All-new High density FEA-optimized cast aluminum basket provides unequaled levels of rigidity, tensile strength, and energy transference available from a subwoofer.
Dual 24-strand copper and Nomex composite high-temperature leads woven through the suspension provide a pristine electrical connection from the amplifier to the voice coil.

Premium glass fiber laminated dustcap and reinforced and vented paper-composite cone sub-structure ensure a light, rigid, and neutral radiating surface.
Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output, even at reference volumes.
Extreme oversized low carbon vented steel U-yoke and top plate provide superior cooling and improved magnetics for maximum performance and efficiency.
Copper ring shorting sleeve reduces gap induction and distortion, enhances thermal conductivity
Nickel-plated high-tension spring terminals
Proprietary injection molded gasket and parabolic SBR extreme-excursion surround maintains ideal pistonic motion for pinpoint accuracy and control
Low carbon 1008 steel components with black electrophoresis plating

Amplifier Specs:

Massively powerful Sledge 1,200-watt continuous Class D design with 4,000+ watts of Peak Power.
Unmatched intelligence from user adjustable low pass, phase, polarity and room gain compensation with three parametric EQs and port tuning (Ported models only) for absolute best alignment with speakers and optimized performance in any room.
Groundbreaking SVS Bluetooth DSP control app for iOS and Android devices with three user presets allow custom tuning for every room and system.
High efficiency cool-running Class D switching topology with massive 32 Amp 600 Volt MOSFET’s result in lower EMI and highest efficiency while providing effortless power to produce SPLs and low frequency output with pristine clarity well beyond reference listening levels.
High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is most advanced subwoofer processor available for perfect audio reproduction.
100v-240v full range input active Power Factor Correction (PFC) pre-regulates mains to solid 360V DC regardless of mains voltage or quality so the sound quality never falters no matter what’s coming out of the wall
Active PFC lowers average current and smooths mains input current allowing for 1200W output from a standard 15A mains circuit.

XLR and RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications.
Convenient front-mounted display featuring new Intelligent Feature Control (IFC) with bright blue dimmable/defeatable 8-digit LED front display.
Custom EQ and DSP limiter settings tuned specifically for the SB-4000 sealed cabinet design.
Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience.
Input impedance 22kohm (unbalanced RCA)/ 22kohm (balanced XLR).
Green 0.5-watt low standby power consumption
RoHS compliant, lead-free construction, world-wide safety certifications
