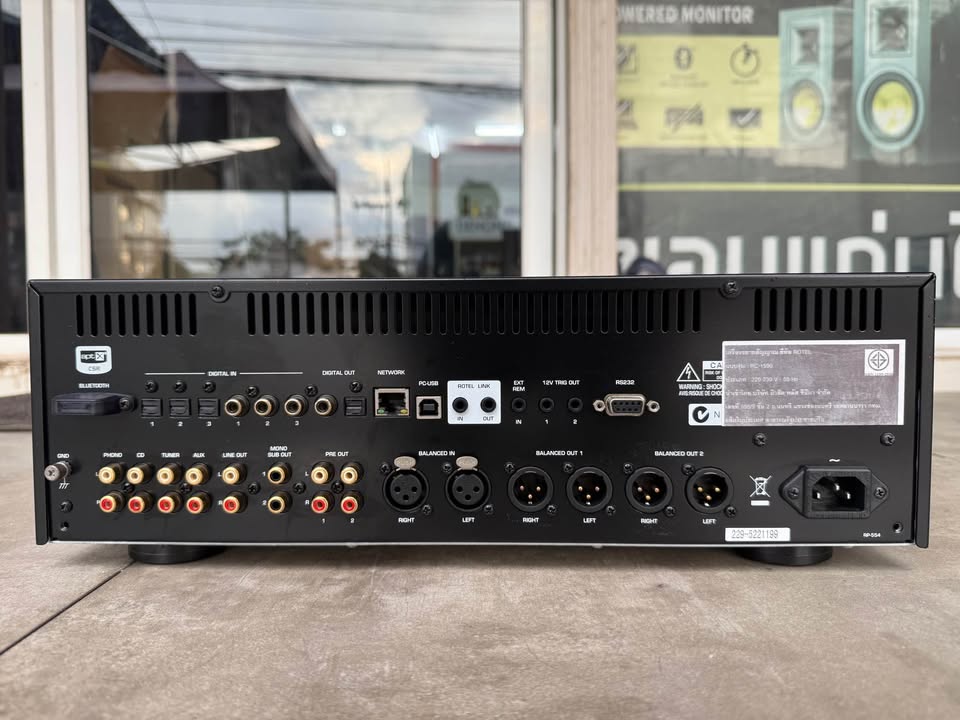

ROTEL RC-1590
Specifications
Intermodulation Distortion
(60Hz:7kHz, 4:1)
<0.002%
Input Sensitivity
Line Level Inputs (RCA): 150mV
Line Level Inputs (XLR): 250mV
Digital Inputs: 0dBFs
Phono Input (MM):
2.5mV
Input Impedance
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Input Overload
Line Level Inputs (RCA): 4V
Line Level Inputs (XLR):
5.5V
Phono Input: 64mV
Output Level
Unbalanced (RCA): 1V
Balanced (XLR): 2V
Channel Separation
Line Level Inputs (RCA): >85dB
Line Level Inputs (XLR): >75dB
Phono Input: >85dB
Tone Controls
±10dB at 100Hz / 10kHz
