B&W 606 S 3

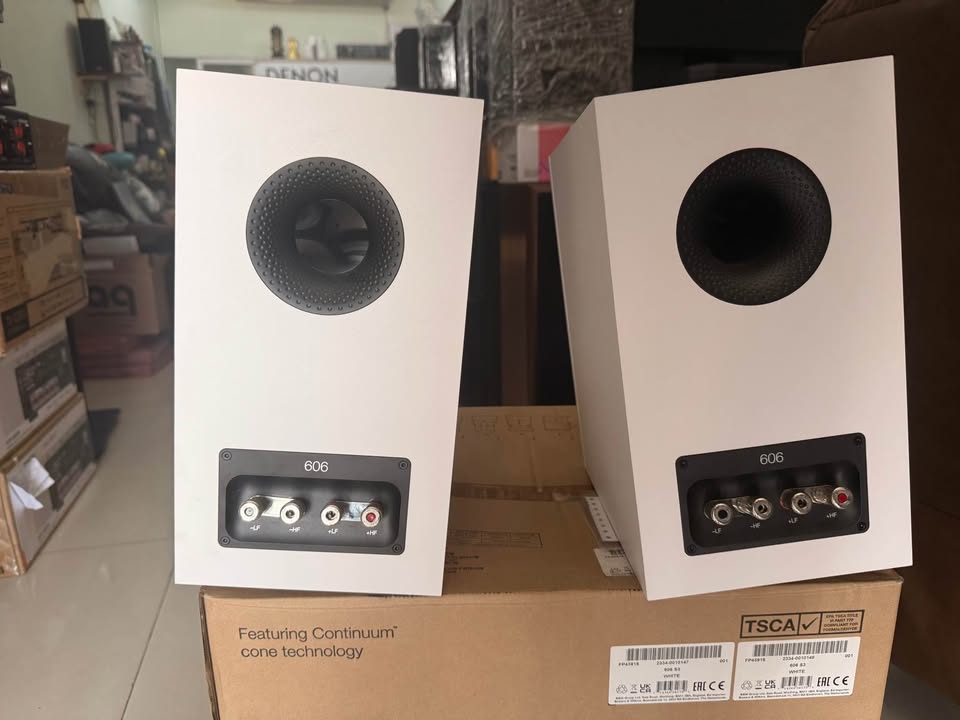

Upgraded speaker terminals
Derived from the speaker terminals recently introduced in our 700 Series range, the speaker terminals on the new 606 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.
Specifications
Technical features Decoupled Double Dome Titanium tweeter
Continuum™ cone bass / midrange
Flowport™
Description 2-way vented-box system
Drive units 1x ø25mm (1 in) Titanium Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
Frequency range -6dB 40Hz - 33kHz
Frequency response (+/-3dB from reference axis) 52Hz - 28kHz ±3dB
Sensitivity (on axis at
2.83Vrms at 1m) 88dB
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 150Hz - 12kHz
Nominal impedance 8Ω (minimum 3.7Ω)
Reccomended amplifier power 30W - 120W into 8Ω on unclipped programme
Max recommended cable impedance 0.1Ω
Dimensions Height: 344 mm (13.6 in) cabinet only
Width: 189 mm (7.4 in) cabinet only
Depth: 300 mm (11.8 in) cabinet only
328 mm (12.9 in) including grille and terminals
Net weight
7.05kg (15.5 lb)
