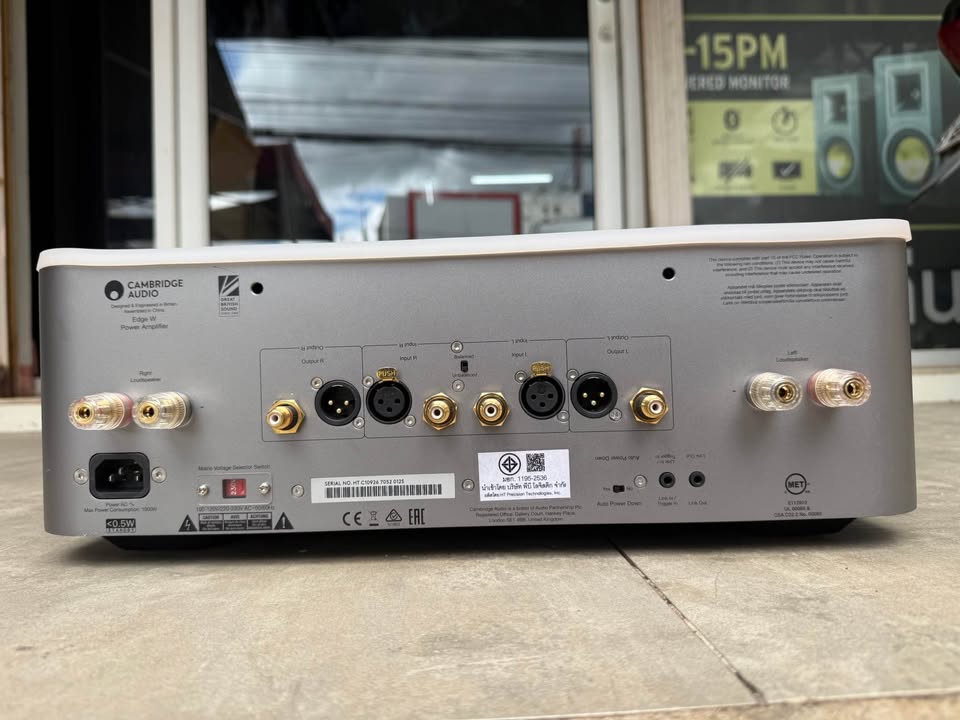

สภาพดีมีกล่องคู่มือครบราคา 55,999.B สนใจติดต่อ 0816623531

Technical specification
Support
Manual

Continuous power output

100W RMS into 8 Ohms; 200W RMS into 4 Ohms

Thd (unweighted)

<0.002% 1kHz at rated power (8 Ohms); <0.02% 20Hz – 20kHz at rated power (8 Ohms)

Frequency response

<3Hz – >80kHz +/-1dB

S/n ratio (ref 1w into 8 ohm)

>93 dB

Crosstalk @ 1khz

< -100dB

S/n ratio (ref full power)

>113 dB

Input sensitivity

Input A1-A2 (unbalanced) 1.09V RMS

Input impedances

Input A3 (balanced) 47k Ohm; Input A1-A2 (unbalanced) 47k Ohm

Inputs

Balanced, Unbalanced

Outputs

Speakers, Loop out

Max power consumption

1000W

Standby power consumption

<0.5W

Dimensions

150 x 460 x 405mm (5.9 x 18.1 x 15.9")

Weight

31.4kg (69.22lbs)

In the box

Edge W Power Amplifier; 1.5M Power Lead; Edge Link Cable; Edge W User Manual, Warranty Card
