เพิ่มข้อความเมื่อ : 21:53 08/12/2025
Specifications
· System Type: Monaural Class G subwoofer amplifier
· Power Output: 120 watts RMS into 8 ohms, 165 watts into 4 ohms
· Frequency Response: 25Hz - 150Hz +/-3dB
· Distortion: Less than 0.03% at full power
· Crossover: Low-pass continuously variable between 35-150Hz, 18dB/octave
Selectable high-pass at 50, 75, and 110Hz, 12dB/octave (line-level)
Fixed high-pass at 100Hz (8 ohms), 6dB/octave (high-level)

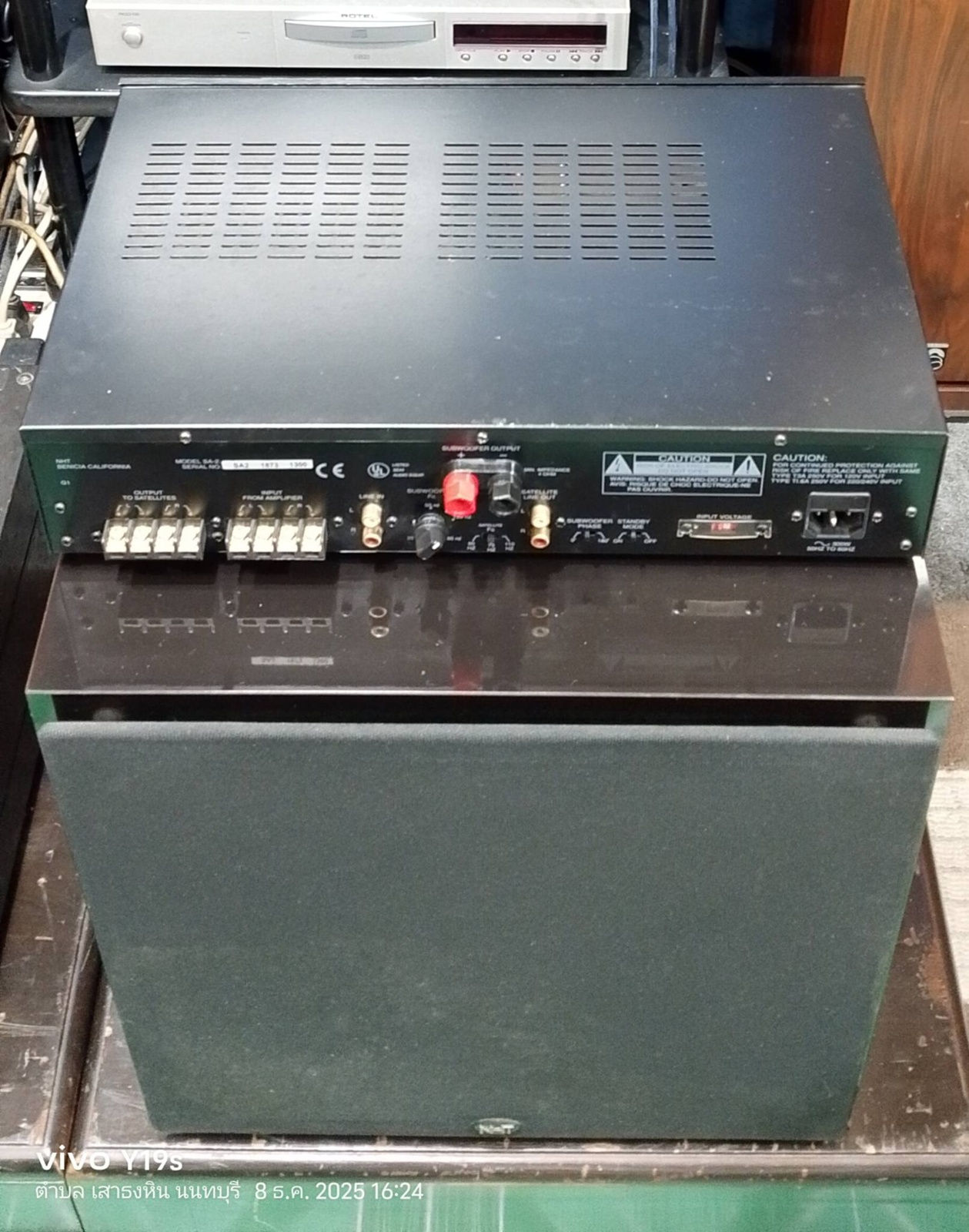

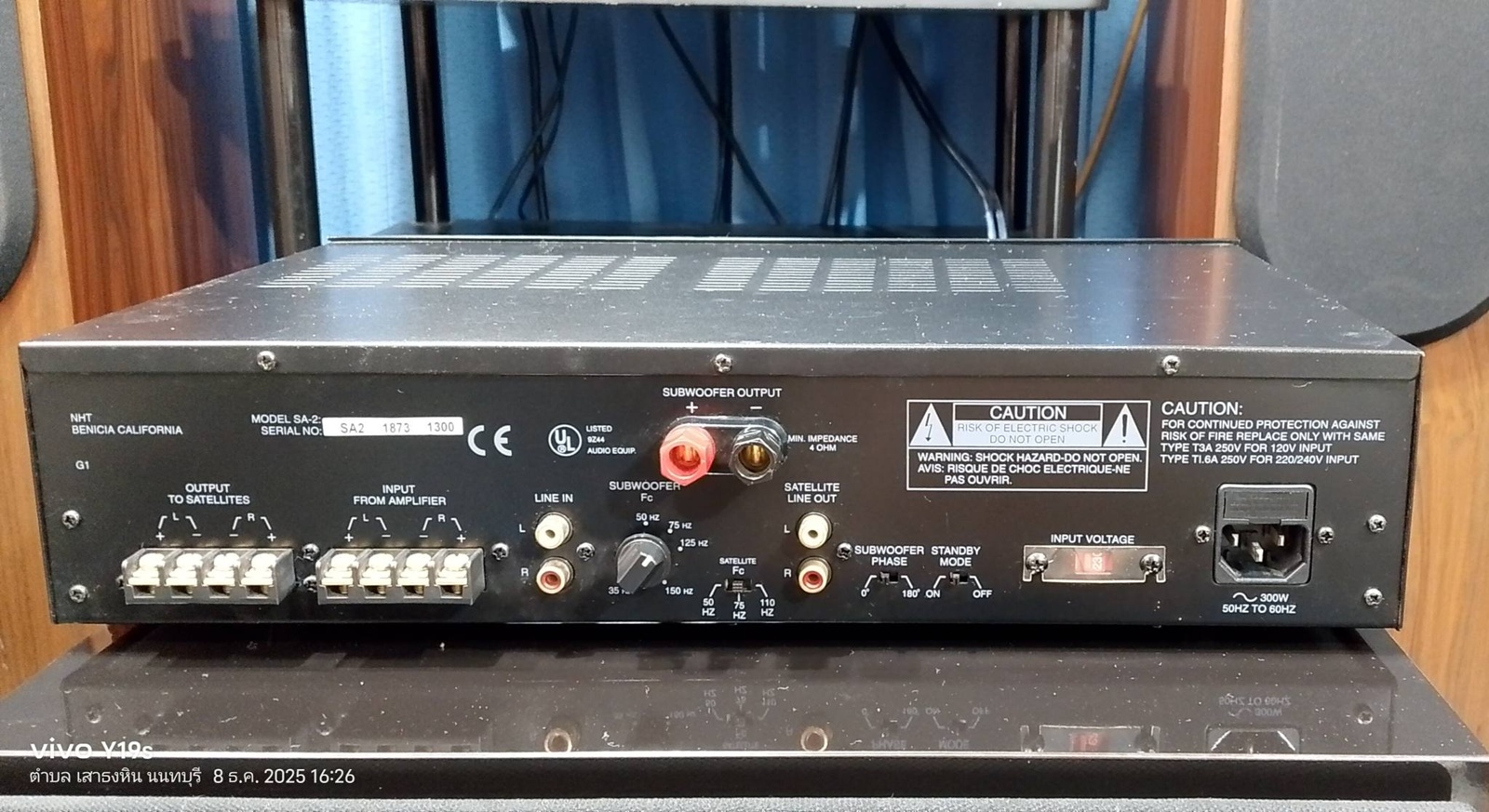

·Input Connectors: Gold plated RCA jacks for line level input
Gold plated barrier strip for speaker level input
· Output Connectors: Gold plated RCA jacks for line level output
Gold plated barrier strip for speaker level output
Gold plated 5-way binding posts for subwoofer output
· Phase Control: 2 position selectable at 0 and 180 degrees
· Standby Mode: (defeatable) Automatically shuts off when no signal is present for 10 minutes
· Weight: 15 lbs.
· Dimensions: 3.75"H x 16"W x 10.75"D
ผู้เพิ่มข้อความ :
ลุงยิ้ม
