1.PRE/PRO Marantz AV7705 สภาพดีราคา 32,900.B
2.PRE/PRO Marantz AV8802a สภาพดีราคา 35,900.B
3. 0nkyo PR-RZ5100 สภาพดีราคา 30,900.B
สนใจติดต่อ 0816623531

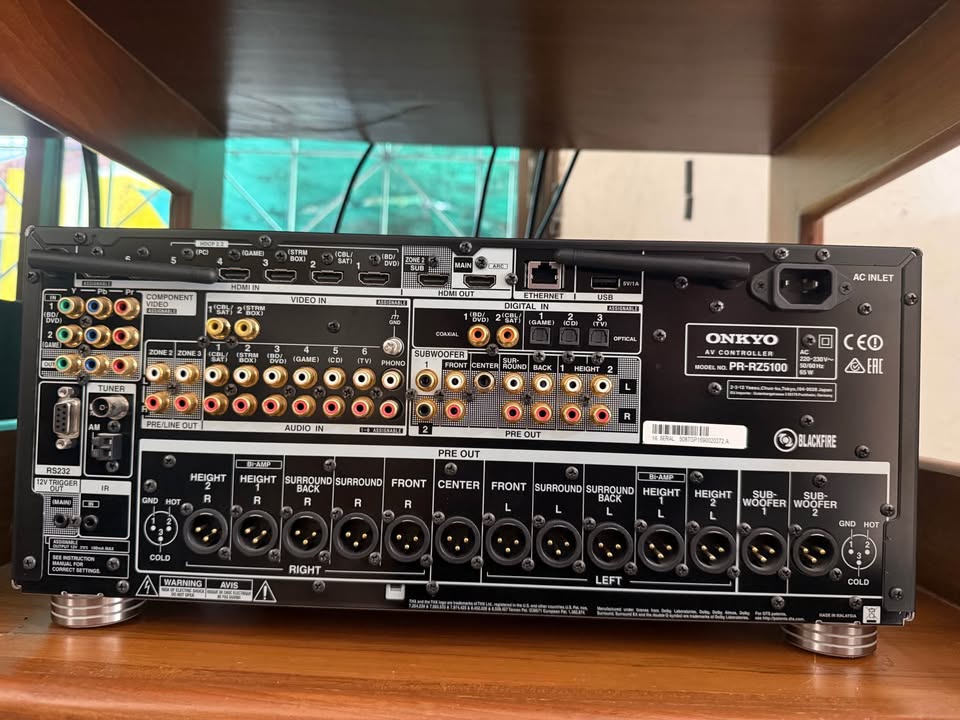

0nkyo PR-RZ5100


ONKYO PR-RZ5100 PRE PROCESSOR

-HIGHLIGHTS
THX® Ultra2™ Plus Certification
Native DTS:X™ and Dolby Atmos® to 7.2.4 Channels
DTS Neural:X™ Upmixing for Legacy Multichannel Formats
Google Cast, AirPlay®, Wi-Fi®, and Bluetooth® App Streaming
AccuEQ Room Calibration with AccuReflex Technology
FireConnect™ Multi-Room Wireless Technology
HDMI® 8 In (1 Front), Main Out, Zone 2 Out (HDCP 2.2/HDR*1)

-ADVANCED FEATURES
THX® Ultra2™ Plus Theater-Reference Audio Performance
7.2.4-channel DTS:X™ and Dolby Atmos® Object-based Audio Decoding
DTS Neural:X™ Upmixes Standard 5.1 and 7.1 formats to 3D Sound
HDMI Supports 4K/60 Hz, High Dynamic Range, 4:4:4 Color Space, and HDCP 2.2-protected Video*1
Customized and Shielded Low-Hum Transformer and Separate Transformer for Standby
VLSC™ (Vector Linear Shaping Circuitry) Noise-free Signal Processing for All Channels
Google Cast*2, AirPlay, Wi-Fi®, Bluetooth*3, TuneIn Radio, Pandora®, Spotify, TIDAL*2, and Deezer*2 for App-based Audio Streaming*4
Network/USB Audio (DSD 11.2 MHz [Stereo], 192/24 PCM, Dolby® TrueHD, FLAC, WAV, ALAC, AAC, MP3, WMA)
Whole House Mode Function
AccuEQ Calibration with AccuReflex for Seamless Object-based, Multichannel, and Stereo Sound (Setup Mic Included)
FireConnect™*2 Wireless Multi-room Digital/Analog Audio Distribution to Compatible Speakers (Sold Separately)
11.2 Multichannel and XLR Pre-Outs for Amplifier Connection
PLL (Phase Locked Loop) Jitter-Cleaning Circuitry for S/PDIF Audio
Remote App for iPhone/iPod touch*5 and Android™ Devices*6
*1 6G Video/HDCP 2.2 supported on HDMI inputs 1–5, Main Out, and Zone 2 Out.
*2 Services enabled via firmware update. Details TBA.
*3 Bluetooth specification Version 4.1 (compatible profile: A2DP v1.2, AVRCP v1.3) also supporting Advanced Music Optimizer.
*4 Availability of services depends on region. Some services may require a paid subscription and firmware update. Availability of third-party services advertised here is accurate at the time of publication, but may be subject to change without notice.
*5 Compatible with iPod touch (5th generation or later) and iPhone 4GS or later.
*6 Requires Android 4.0.3 or later.

-PROCESSING FEATURES
HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, Dolby® Digital Plus, Dolby® Surround, DTS:X™, DTS-HD Master Audio™, DTS 96/24, DTS-ES, DTS Express, DTS Neural:X™, THX® Cinema/Music/Game, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Dolby Atmos®, DTS:X™, Dolby® TrueHD, and DTS-HD Master Audio™ Decoding
Separate 384 kHz/32-bit AK4490 Stereo DAC (Front L/R), 2 x 768 kHz/32-bit AK4458 Multichannel DACs (Surround Channels)
Discrete 192 kHz/24-bit AK4388 Stereo DACs (x2) for Zone 2 and Zone 3
Multiple 32-bit Digital Signal Processing Engines
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Theater-Dimensional Virtual Surround Function
Direct Mode and Pure Audio Mode

CONNECTION FEATURES
8 HDMI Inputs (1 Front/7 Rear), Main, and Zone 2 Outputs
Component Video Switching (2 Inputs and 1 Output) and 2 Composite Video Inputs
5 Digital Audio Inputs (3 Optical and 2 Coaxial) and 7 Analog Audio Inputs
Phono Input (MM) for Turntable Connection
Mass Storage Class USB Memory Playback Capability (Rear Input)
11.2 Multichannel and XLR Pre-Outs
Zone 2 and Zone 3 Pre-/Line Outs
Dual Subwoofer Pre-Outs
12 V Trigger Out (Assignable) with IR Input; Supports IP and RS232
6.3 mm Headphone Input

-OTHER FEATURES
Tone Controls (Bass/Treble) ±10 dB for All Channels
Independent Crossover Adjustment for Each Channel (40 ⁄ 50 ⁄ 60 ⁄ 70 ⁄ 80 ⁄ 90 ⁄ 100 ⁄ 120 ⁄ 150 ⁄ 180 ⁄ 200 Hz)
A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
New Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Setup Function
Hybrid Standby Function with HDMI Passthrough
40 FM/AM and 40 Internet Radio Station Presets
RIHD (Remote Interactive Over HDMI) for System Control
Aluminum Front Panel and Volume Control Knob
Simple Remote Control

-GENERAL SPECIFICATIONS
Dimensions (W x H x D): 435 x 201 x 447.5 mm
Weight: 13.6 kg
Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance without notice.

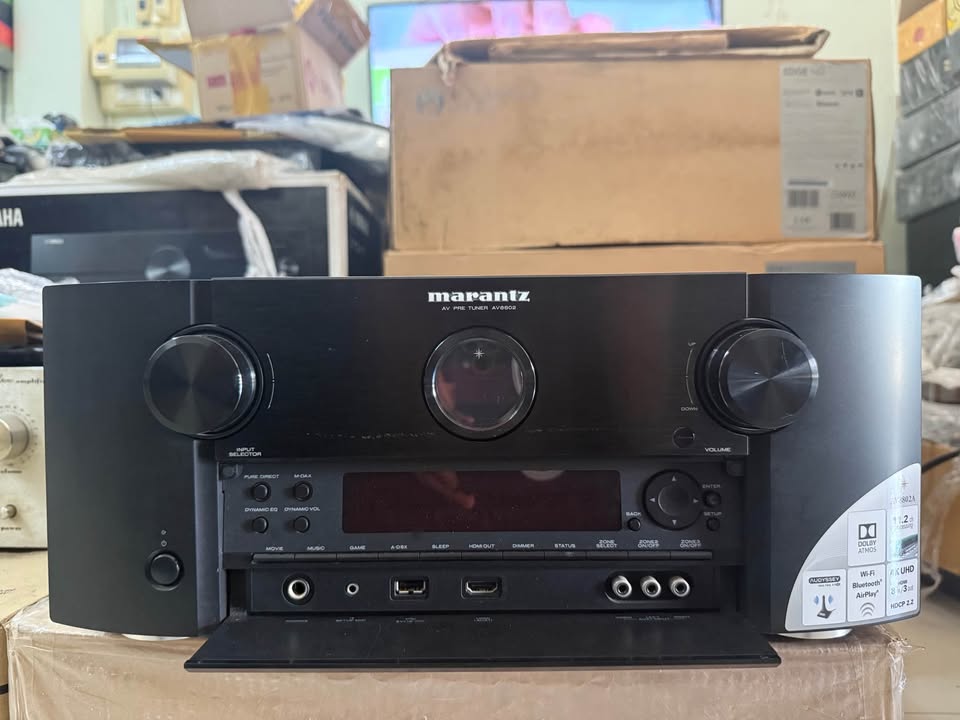

PRE/PRO Marantz AV8802a
Product info:

Processing:

Dolby® and DTS® surround sound decoding
Dolby Atmos processing for use with in-ceiling or "height" speakers for more enveloping surround sound; compatible with 7-, 9-, or 11-channel setups
Auro-3D® ready decoder for creating three-dimensional soundfields with Auro-3D soundtrack mixes and a 10.1-channel speaker configuration (requires $199 firmware upgrade for activation, see more information here)
next-generation DTS:X surround sound available via firmware update
video upconversion (up to 4K) for analog and HDMI sources
Audyssey "Platinum" speaker calibration and system optimization includes:
MultEQ® XT32 advanced auto setup and room calibration uses high-resolution digital processing filters to deliver balanced, dynamic sound to as many as 8 listening positions (expandable to 32 with a professional installer)
DSX® (Dynamic Surround Expansion) optimizes "front height" or "front width" speakers to create a larger soundstage with more engaging surround effects
Audyssey Dynamic Volume mode to keep listening levels steady
Audyssey Dynamic EQ for fuller sound at lower listening levels
Sub EQ HT provides individual calibration for dual subwoofers, for even bass response throughout the room
Low Frequency Containment reduces the amount of bass that bleeds into other rooms

Digital Music Options:

built-in Wi-Fi for listening to music from a networked PC, free Internet radio, and music services
includes support for Pandora, SiriusXM, and free Internet radio streams with vTuner (subscription required for some services)
firmware update needed to connect to Pandora: available 10/28/2016
Spotify Connect lets you play Spotify's streaming music library through the receiver via your smartphone or tablet (requires Spotify app and a premium subscription)
Apple AirPlay for streaming music from an iPhone, iPad, iPod touch® or computer running iTunes®
built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
front-panel USB input for connecting an iPod®, iPhone® or thumb drive
direct digital connection for iPod or iPhone bypasses the device's digital-to-analog converter for better sound
plays high-resolution digital music files via USB storage device or a networked computer (PCM up to 24-bit/192kHz resolution; DSD up to 2.8 MHz .dsf files)
DLNA certified for streaming music with compatible devices and computers
M-DAX™ (Marantz Dynamic Audio eXpander) for better sound from MP3s and other digital music files

Multi-room Audio:

three-room/three-source output
line-level outputs for Zones 2 and 3
Zone 2 HDMI output for watching video content from different sources in two rooms simultaneously
component and composite video outputs can be assigned to Zone 2

Connections:

13.2-channel balanced XLR outputs
13.2-channel unbalanced RCA outputs
HDMI 2.0 audio/video switching: 8 in (includes 1 front-panel input), 3 out
HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs
component video switching: 3 in, 2 out
composite video switching: 4 in, 2 out (includes front-panel input)
digital audio inputs: 2 optical and 2 coaxial
6 analog stereo audio inputs (including front-panel input)
1 pair balanced XLR audio inputs
phono input for connecting a turntable
7.1-channel preamp inputs
Ethernet port for wired network connection
RS-232C, IR, remote, and 12-volt trigger connections for use with external controllers
1/4" headphone output
detachable power cord

Audio Performance Features:

massive low-noise toroidal power transformer derived from Marantz Reference Series components
premium grade AKM AK4490 32-bit DACs on all channels
fast-response, high-current Shottky barrier diodes in power supply deliver faster switching and lower voltage drop for purer DC output
fully discrete current-feedback HDAM-SA2 modules
heavy copper-plated chassis with three-piece top cover and double-layer bottom plate provide superior structural strength and isolation from vibration and interference
high-density anti-vibration feet with felt insulators

General Features:

4K/60p and 3D video pass-through
free Marantz remote app lets you use your Apple or Android device as a Wi-Fi® remote
Setup Assistant guides you through the initial connection process and settings
intuitive, full-color on-screen guide
Video Select lets you listen to music while watching video from a different source
HDMI standby pass-through allows HDMI switching without powering up receiver
built-in AM/FM HD Radio™ tuner
remote control
17-3/8"W x 7-1/4"H x 17-13/16"D
weight: 30.6 lbs.
warranty: 3 years
