HiFi-Tuning Data Sheet

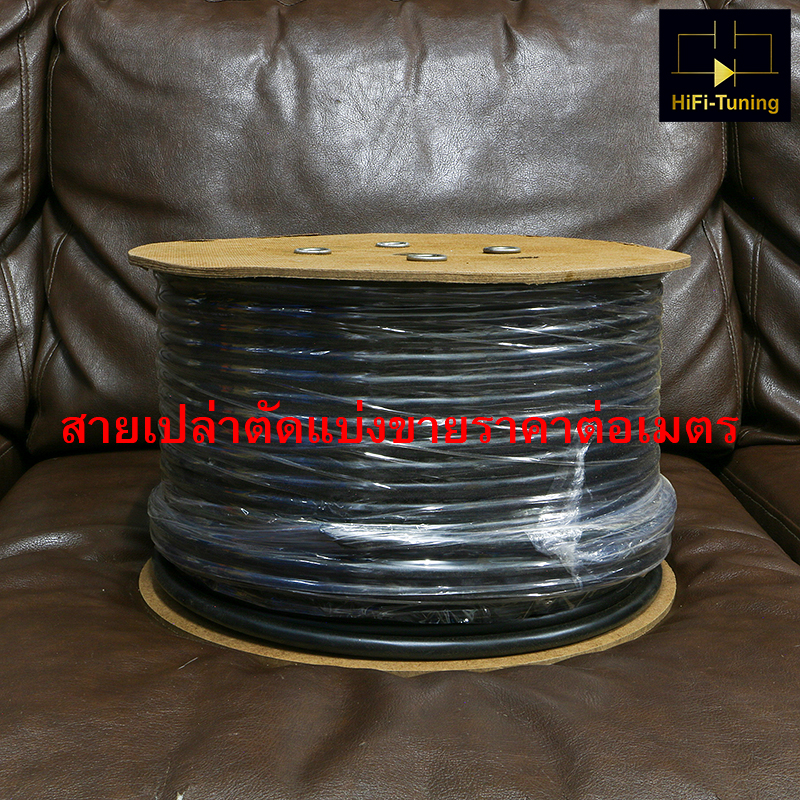

3 x 4mm² Ultimate-Solid Core Powerline
assembly instructions:

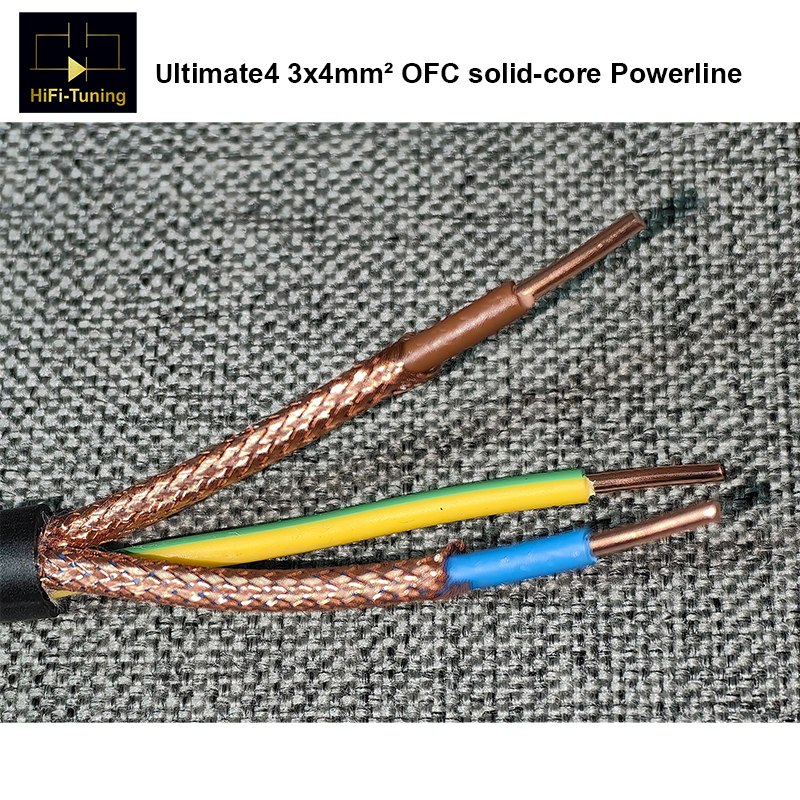

conductor: Cu-OF1 (OFC-Copper) / DIN EN 13602
wire massiv 2,26mm blank
conductor isolation: Specialpolyolephine
diameter: nom. 3,80mm ± 0,15mm
color: blue, brown, green/yellow
shielding: in each case copper braid over blue und brown,
optical density ca. 85%
cable laying: 3 Wires optimally twisted together
winding: non-woven film
outer jacket: PUR, Halogenfree & Hydrolysis resistant
Diameter: Ø 11,6mm ± 0,3mm
Color: black, similar RAL 9005, dull
Printing in white: (Logo) www.Hifi-Tuning.com (Logo)

Technical Data:
conductor resistance: max. 4,270 Ohm/km. = 0,00427 /m.
rated voltage: 240 Volt at (50 Hz)
test voltage: 3,0 kV
temperature range dormand: - 40°C bis +80°C
temperature range moved: - 5°C bis +70°C
oil resistance: according to DIN EN 60811-404
Halogen-free according to: IEC 60754-1; EN 50267-2-1
